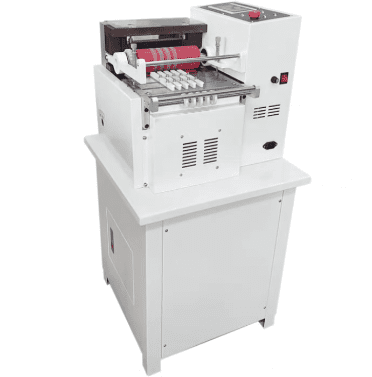

HH-200R Tube Cutting Machine
Product Features
※ Automatic cutting for various kind of tube, horizontal structure and easy operation;
※ Controlled by micro-computer, as product length, capacity, ration and speed can be set digitally;
※ Free setting of feeding speed, adjustable roller feeding structure, automatic pressure adjusting and up & down movement on two sides, effectively prevent scuffing on the product;
※ High precision, low consumption rate and ergonomic design.
Operating Videos
HH-200R https://youtu.be/4d55Ge9GBC4 Sleeve cutting with hot-melt cutter
HH-200L https://youtu.be/7bwjtDPbkUo Laser cutting with flame retardant grassfiber sleeves

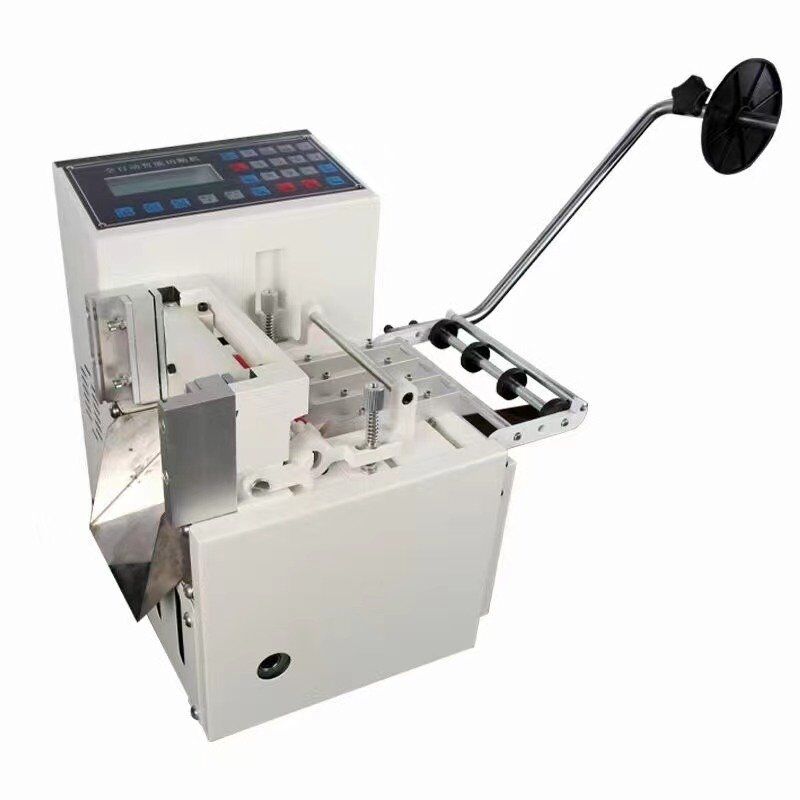

HH-100R https://youtu.be/5AKheVovSmM Hotmelt cutter
Details About HH-200R Tube Cutting Machine
Technical Parameters
| Machine Model | HH-200R Tube Cutting Machine |
| Display Language | English |

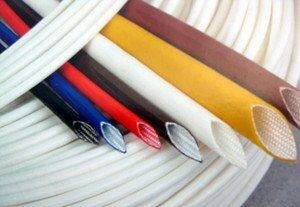

| Applicable Tube Type | Shrinkable tube, Ribbon cable, Shielding wire, etc.,It can add hot-melt cutter to process the color ribbon belt and nylon braid, among others |
| Cutting Length | 2～10000mm |
| Cutting Width | 1～100mm |
| Cutting Precision | ﹤± (0.1+0.005*L), L= Cutting Length |
| Capacity | 5800 pcs/h(depending on tube materials) |
| Cutter Material | high speed steel |
| Speed Adjustment | 00-99 |
| Power | AC 220V, 50/Hz, 800W |
| Dimension | 450mm*450mm*1000mm |
| Weight | About 56Kg |
