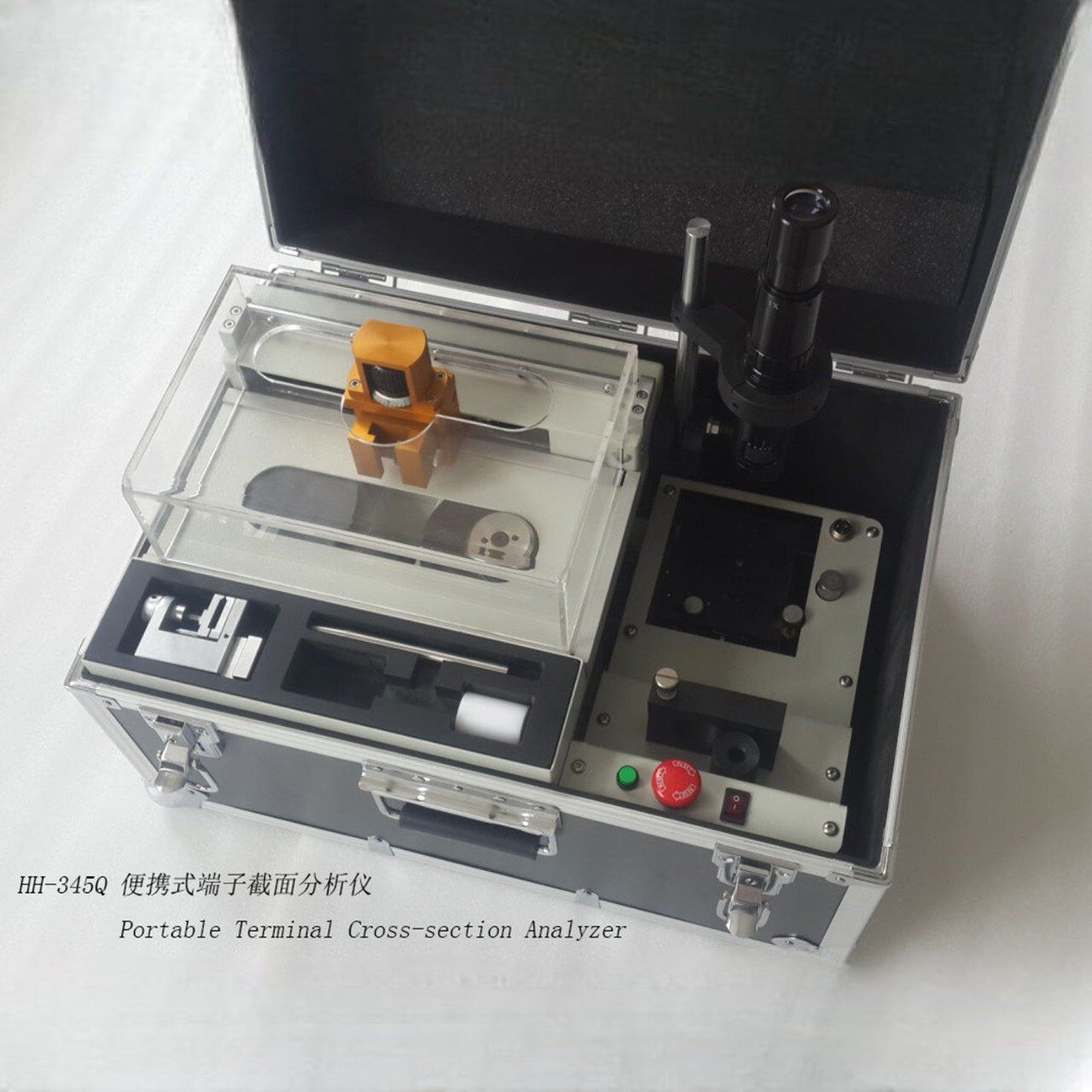

HH-300Q Portable Terminal Cross-section Analyzing Machine
Product Description
HH-300Q Portable Terminal Cross-section Analyzing Machine is widely applied in wire harness from automobiles, medical equipment, etc.
Operating Video:
HH-300Q https://youtu.be/ZZApMpBU_Ww
Details About HH-300Q Portable Terminal Cross-section Analyzing Machine
Product Features
※Exquisite in design, easy to carry and operate;
※ Optical instrument is high quality and low distortion, and equipped with image capture module；
※Equipped with optical instrument safety protection device, which is easy to transport；
※ Automatic cutting module with the fine-tuning high-speed grinding module；
※The design of protective cover increases the safety of operation；
※Test results are generated automatically by relevant software.
Technical Parameters
| Model | HH-300Q Portable Terminal Cross-section Analyzing Machine |
| Display Language | English |
| Control System | PLC |
| Measure Range | 0.13mm²～6mm² |
| Cutting Speed | 2mm/s |
| Cutting/Grinding Speed | 2800rpm(Imported German Motor) |
| X-axis Movement | Panasonic Servo Motor |
| Cutting Disc | Inner diameter: 21.7mm, outer diameter:105mm, thickness:0.5mm(Germany made, exquisite and durable) |
| Observing Range | 1.2mm～8.2mm(X-axis) |
| Z-axis Fine-tuning Range | 0.00mm～5.00mm; outer diameter of sandpaper:100mm |
| Electrolysis | Up to 6mm² |
| Time | 5～30s |
| Lens Magnification | 0.75X～5.0X |
| Teeth Magnification | 0.75X～5.0X |
|

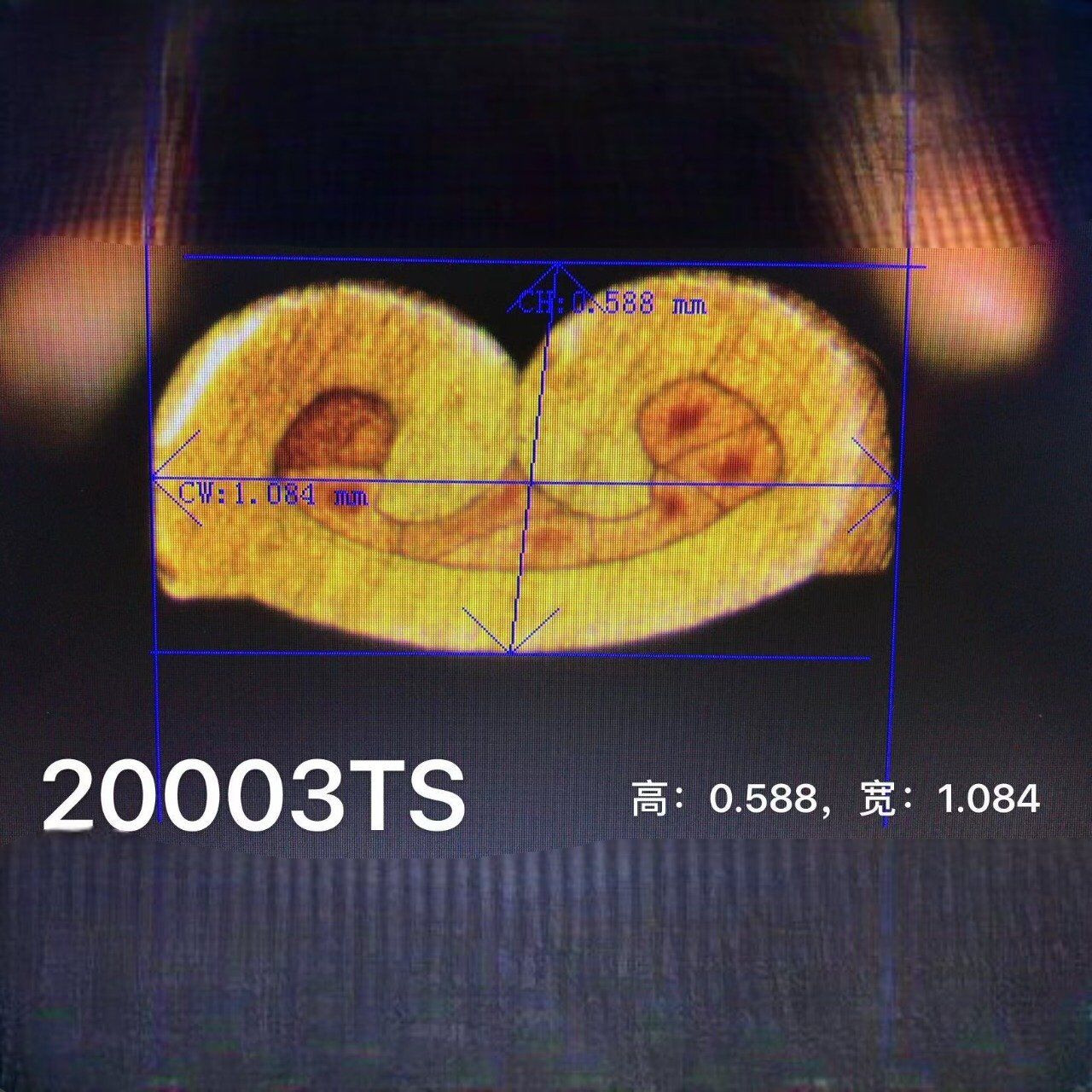

Analysis & Archiving |
The 3 million pixel camera of Japanese industrial HD video system, USB2.0, and related software, including enhanced measurement tools such as compression ratio, have been certified by the automobile/home appliance / IT industry. |
| Power | 220V, 50HZ, 300W |
| Dimension | 490mm*340mm*340mm |
| Weight | About 30Kg |
