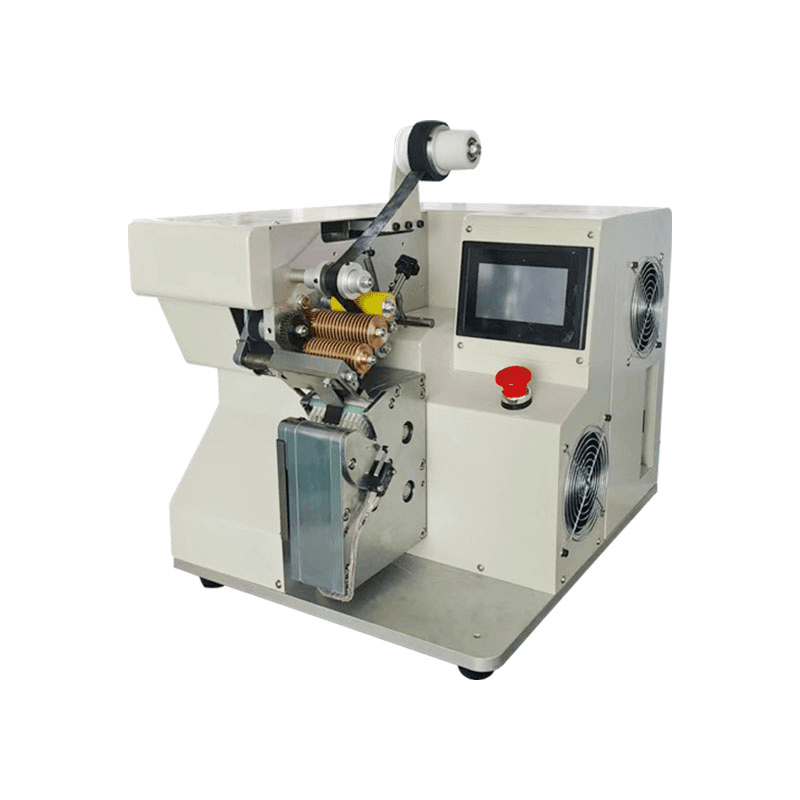

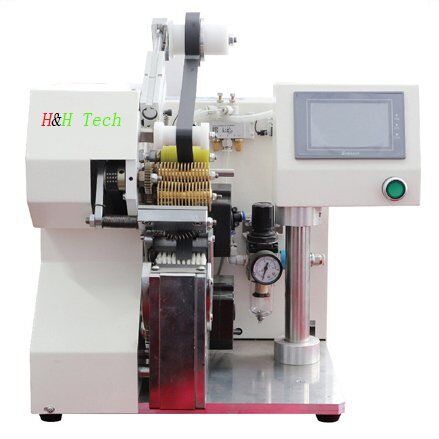

HH-345C Tape Wrapping Machine
Product Description
※ Compatible with different kinds of adhesive tape materials without isolation paper (such as cloth-based tape, PVC tape, etc.);
※ Keep flat and wrinkle-free, it can ensure that each wrapping of the cloth-based tape overlaps with the previous one;
※ Different forms of wrapping can be switched: point wrapping on the same position, spiral continuous wrapping in different positions；
※ Can realize the setting of lap number and speed and the function of the output display. Blades can be quickly replaced.
Operating Video:
HH-345C https://youtu.be/xYbazZMkGGQ
HH-345E https://youtu.be/8zh5ki3d0b8 new small version
HH-345E https://youtube.com/shorts/itbSQmPK3_k ends wrapping at copper conductor
HH-345F https://youtu.be/C7Zjc09bgKw fixture positioning
HH-345F https://youtube.com/shorts/QfA4_H93VXo
HH-345F https://youtube.com/shorts/xA2h_-fqeqs Fixture for processing coaxial cable
HH-345F https://youtube.com/shorts/ZkaYBFrZ2Cs ends wrapping at copper conductor
HH-345G https://youtube.com/shorts/8qQmH1JeryI 3 spots wrapping simultaneously
HH-345M https://youtube.com/shorts/etjAXqm7xZI automibile clasp with positioning function
Details About HH-345C Tape Wrapping Machine
Product Features
※ Compatible with different kinds of adhesive tape materials without isolation paper (such as cloth-based tape, PVC tape, etc.);
※ Keep flat and wrinkle-free, it can ensure that each wrapping of the cloth-based tape overlaps with the previous one;
※ Different forms of wrapping can be switched: point wrapping on the same position, spiral continuous wrapping in different positions；
※ Can realize the setting of lap number and speed and the function of the output display. Blades can be quickly replaced.
Technical Parameters
| Model | HH-345C Tape Wrapping Machine |
| Display Language | English |
| Capacity | 3000 times/h |
| Tape Length | 55～100mm |
| Tape Width | 25～40mm |
| Cable Outer Diameter | ‹10mm |
| Tape Inner Diameter | Φ38mm～Φ75mm |
| Power | 220V, 50HZ |
| Air Supply | 0.5～0.6Mpa |
| Dimension | 600mm*520mm*720mm |
| Weight | About 63Kg |
