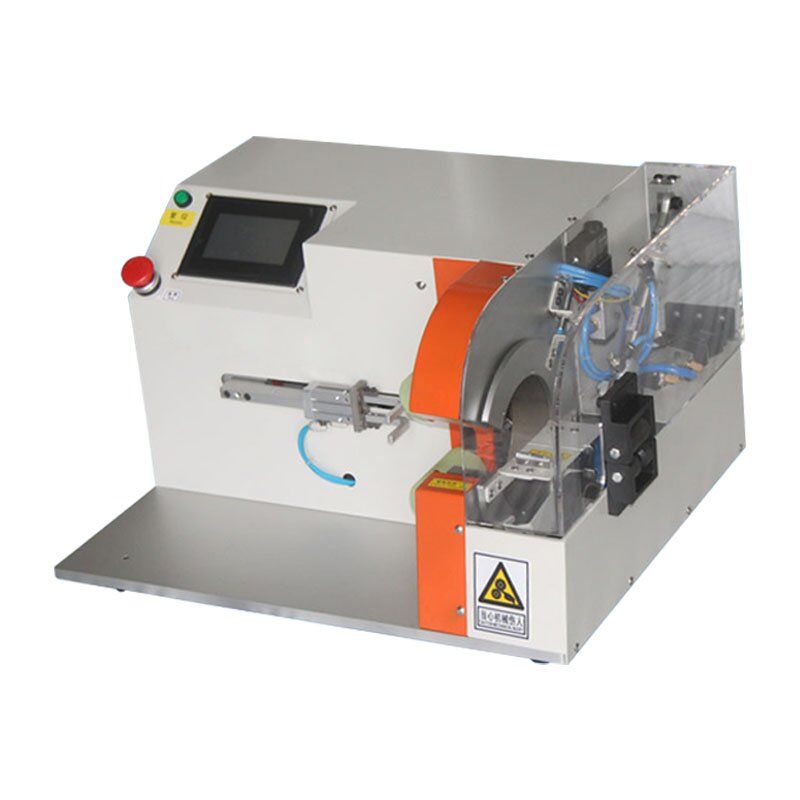

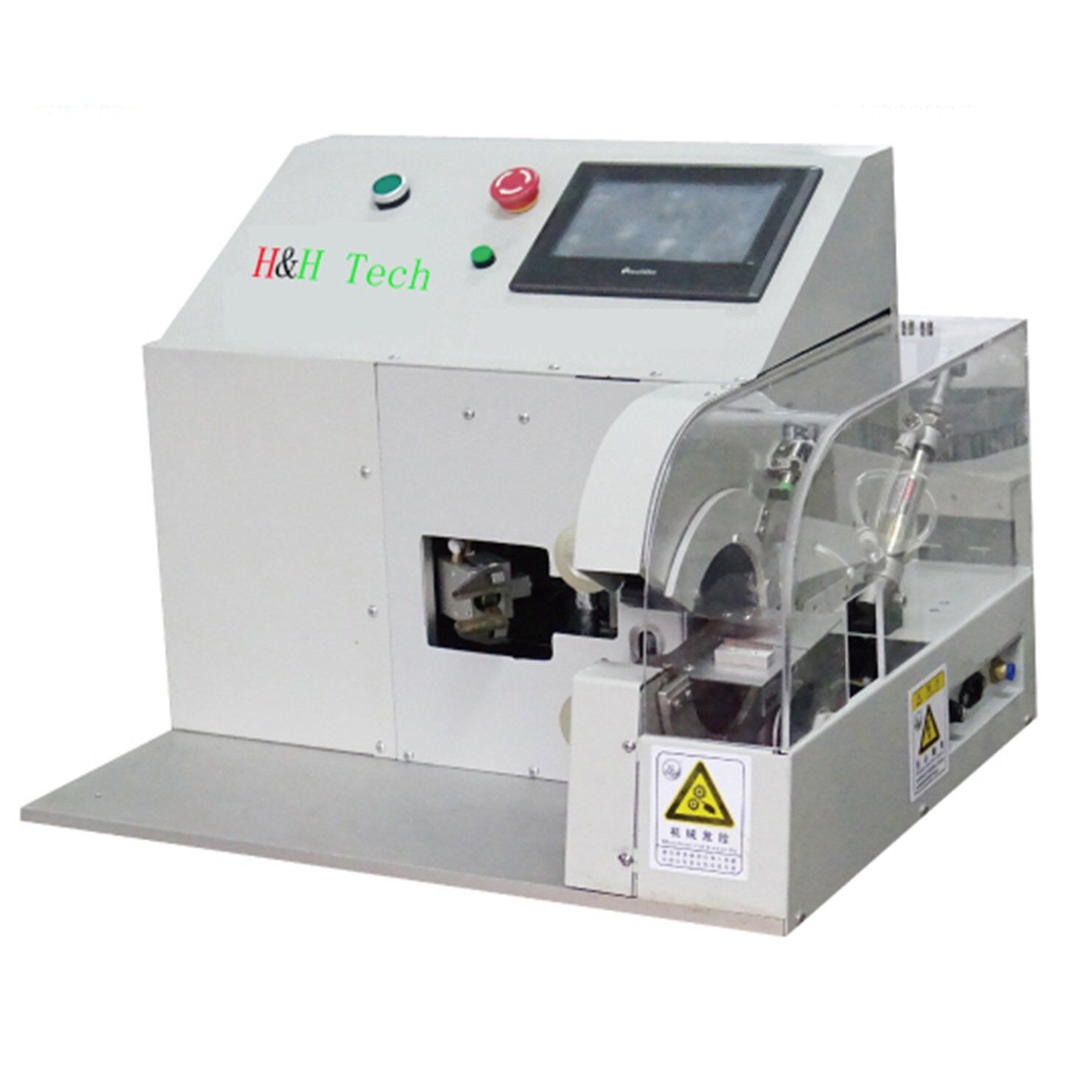

HH-345CL Tape Full Wrapping Machine
Product Description
※ Full wrapping: the adhesive tape overlaps the whole wire harness, and the area of the overlapping is adjustable, for example, the adhesive tape overlaps 1/2, 1/3, 1/4;
※ Point wrapping: the tape wraps a point of the wire harness according to the number of turns, and the number of turns can be set to one turn, two turns, or more;
※ Interval wrapping: the tape does not overlap when wrapping the wire harness, and it is separated by a certain distance, and the distance between them is adjustable；
※ The running speed and the number of tape coils can be adjusted by touch screen. Applied tapes are textile tape, cloth-based tape, PVC tape.
Operating Video:
HH-345CL https://youtu.be/zEbHS1timxs
HH-345CL (wiring harness) https://youtu.be/l1jTRNpSUV8
HH-345CL https://youtube.com/shorts/et8sUhwc44Y a whole cable assembly
HH-345CL https://youtu.be/jlPCZU_3Tcc branch taping for whole cable assembly
HH-345CLL https://youtu.be/IkwdAvwNeHY +Pulling device and tractor
HH-345CLL https://youtube.com/shorts/1Xbufyxn25Y
Details About HH-345CL Tape Full Wrapping Machine
Product Features
※ Full wrapping: the adhesive tape overlaps the whole wire harness, and the area of the overlapping is adjustable, for example, the adhesive tape overlaps 1/2, 1/3, 1/4;
※ Point wrapping: the tape wraps a point of the wire harness according to the number of turns, and the number of turns can be set to one turn, two turns, or more;
※ Interval wrapping: the tape does not overlap when wrapping the wire harness, and it is separated by a certain distance, and the distance between them is adjustable；
※ The running speed and the number of tape coils can be adjusted by touch screen. Applied tapes are textile tape, cloth-based tape, PVC tape.
Technical Parameters
| Model | HH-345CL Continuous Tape Wrapping Machine |
| Display Language | English |
| Max. Diameter | Φ30mm |
| Tape Length | Not limited |
| Tape Width | ‹ 40mm |
| Cable Outer Diameter | 5～25mm |
| Tape Inner Diameter | Φ32mm～Φ37mm |
| Power | 220V, 50HZ, 250W |
| Air Supply | 0.5～0.6Mpa |
| Dimension | 560mm*500mm*350mm |
| Weight | About 45Kg |
