HH-345CLL Tape Full Wrapping Machine with tractor and puller
Functional features

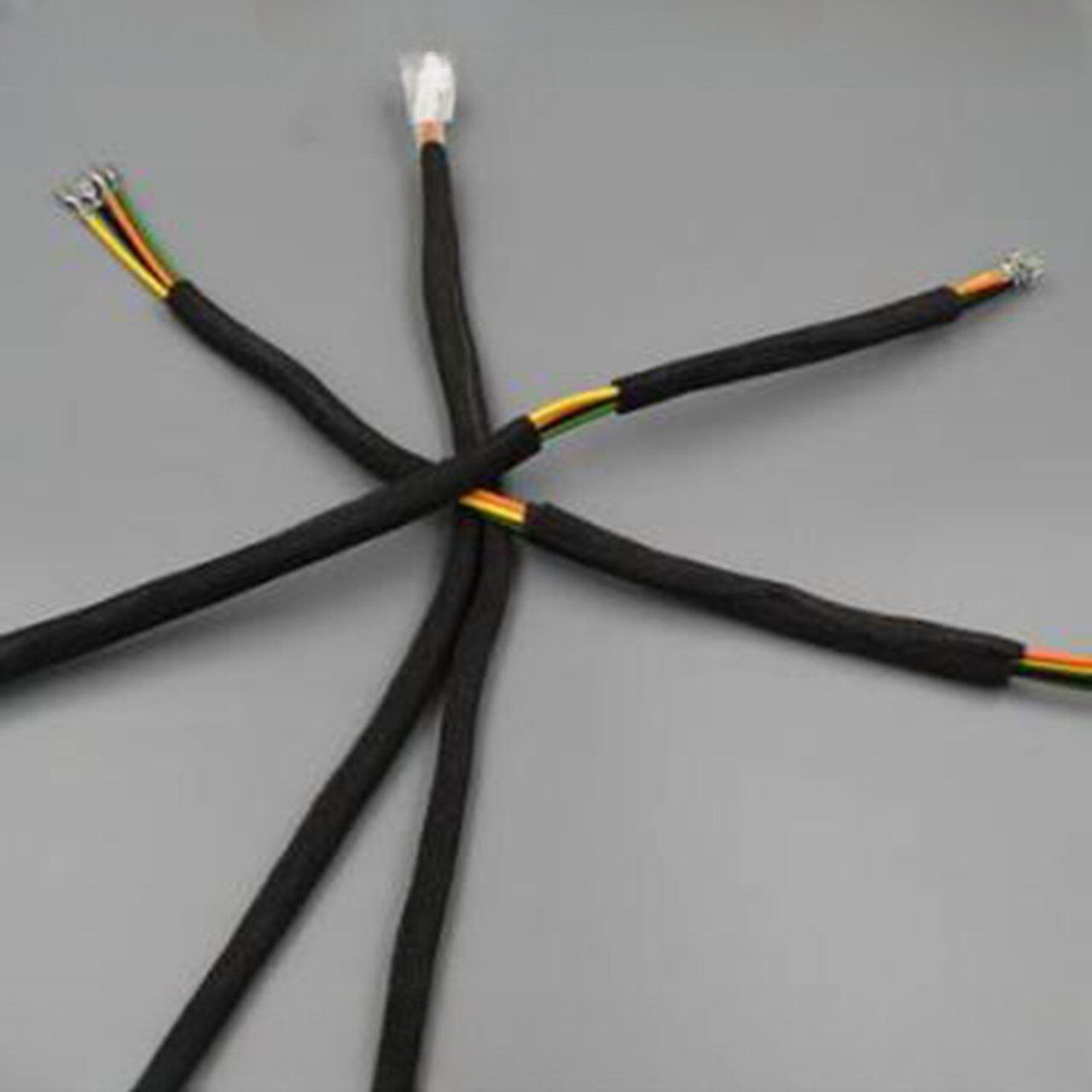

※ Full wrapping: the adhesive tape overlaps the whole wire harness, and the area of the overlapping is adjustable, for example, the adhesive tape overlaps 1/2, 1/3, 1/4;

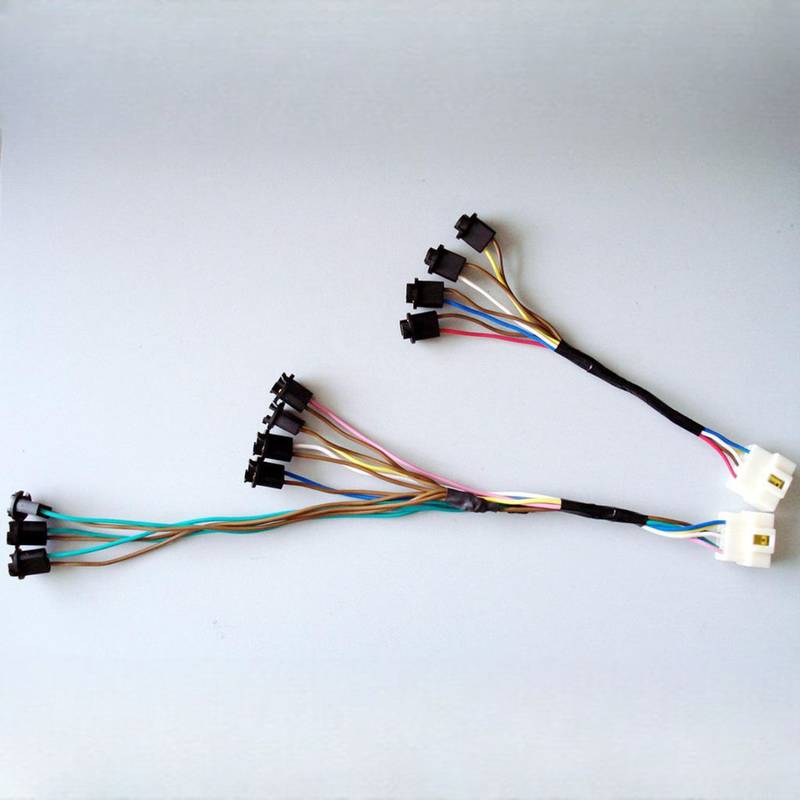

※ Point wrapping: the tape wraps a point of the wire harness according to the number of turns, and the number of turns can be set to one turn, two turns or more;
※ Interval wrapping: the tape does not overlap when wrapping the wire harness, and it is separated by a certain distance, and the distance between them is adjustable；
※ The running speed and the number of tape coils can be adjusted by touch screen. Applied tapes are textile tape, cloth-base tape, PVC tape, etc..
Operating Videos
HH-345CL https://youtube.com/shorts/ZdNeRJ0PmJ4 Full wrapping
HH-345CLL https://youtube.com/shorts/zUV21Tii_W0 +Pulling device and tractor
HH-345CLL https://youtu.be/eC_1KwUM-AY 3:16 time of Pulling device and tractor
HH-345CLL https://youtube.com/shorts/EnS2Z_6UE7A
HH-345F https://youtube.com/shorts/c-zRBTqDM7c ends wrapping at copper conductor
HH-345F https://youtube.com/shorts/VEZ3gUqaYIs Fixture for processing
HH-345F https://youtube.com/shorts/5yfl-dC99cs slide ruler bar
HH-345H https://youtu.be/LU07n3DbEVU
Details About HH-345CLL Tape Full Wrapping Machine with tractor and puller
Technical Parameters
| Model | HH-345CLL Tape Full Wrapping Machine with tractor and puller |
| Display Language | English |
| Touch Screen | 4.7 Inch |
| Max. Diameter | Φ30mm |
| Mode of Control | Electricity & Pneumatic |
| Wire Length | Not limited |
| Tape Width | 5～25mm |
| Applied tapes | PVC tape, Cloth Tape, Flannel Tape, etc. |
| Tape Inner Diameter | Φ32mm～Φ38mm, other sizes need to be customized |
| Tape Outer Diameter | Φ110mm |
| Power | 220V, 50HZ, 600W |
| Air Supply | 0.5～0.6Mpa |
| Dimension | 560mm*500mm*370mm |
| Weight | About 47Kg |
