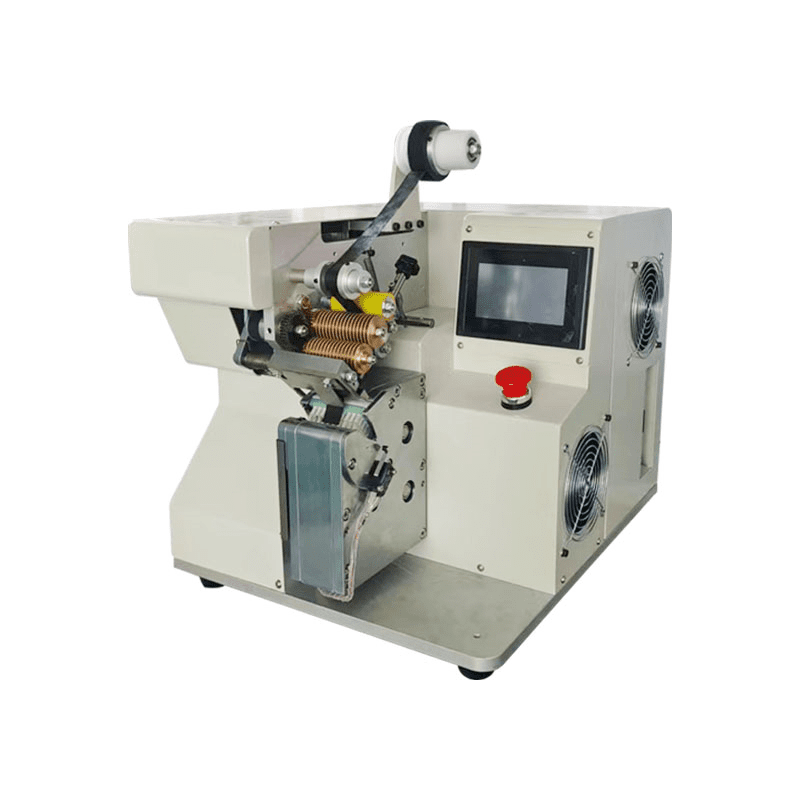

HH-345CS Electrical Tape Spot Wrapping Machine
Functional features
※ Pure electricty driving the machine, no need of pneumatic air supply;
※ Compatible with different kinds of adhesive tape materials without isolation paper (such as cloth tape, PVC tape, etc.);
※ Keep flat and wrinkle-free, it can ensure that each wrapping of the cloth-based tape overlaps with the previous one;
※ Different forms of wrapping can be switched: point wrapping on the same position, spiral continuous wrapping in different positions；
※ Can realize the setting of lap number and speed, and the function of output display. Blades can be quickly replaced.
Operating Videos:
HH-345CS https://youtube.com/shorts/-Z06ghuZKEE electrical driven
HH-345CS https://youtu.be/kZlpXoNNlik electrical driven
HH-345CS https://youtu.be/K_iO-O4lM_k electrical driven
Details About HH-345CS Electrical Tape Spot Wrapping Machine
Technical Parameters
| Model | HH-345CS Electrical Tape Spot Wrapping Machine |
| Power | AC 220V \ 50Hz |
| Operation | 3.8 inch touchscreen, PLC |
| Capacity | 1200pcs/H |
| Precision | 0.5mm |
| Tape Width | 5-45mm |
| Forward Tape Length | 10-50mm |
| Cable or Tube Size | 0.1-8mm outer diameter |
| Tape Material | PVC,PET,paper tape,textile tape, cloth tape, flannel tape,etc. |
| Weight | 35Kg |
| Working Environment | 5℃~40℃ |
| Rated Power | 220W |
| Dimension | 370mm*495mm*385mm |
| Wrapping Types | Spot Wrapping |
| Options | Automatic isolation paper device; cable feed positioning device; contact switch |
