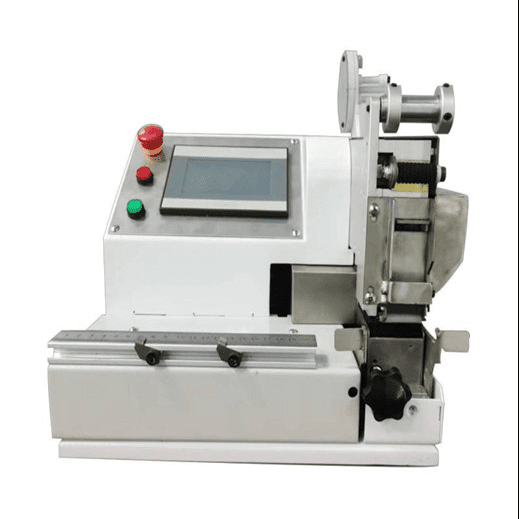

HH-345F Tape Spot Wrapping Machine
Functional Features
※ Compatible with different kinds of adhesive tape materials (such as cloth-base tape, PVC tape, etc.), including tape with isolation paper;
※ It is pure electricity powered, no need of air supply;
※ Keep flat and wrinkle-free, it can ensure that each wrapping of the cloth-based tape overlaps with the previous one;
※ Different forms of wrapping can be switched: point wrapping on the same position, spiral continuous wrapping in different positions；
※ Can realize the setting of lap number and speed, and the function of output display. Blades can be quickly replaced.
Opearting Videos
HH-345F https://youtu.be/C7Zjc09bgKw fixture positioning
HH-345F https://youtube.com/shorts/QfA4_H93VXo

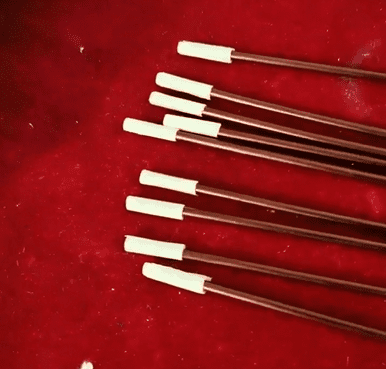

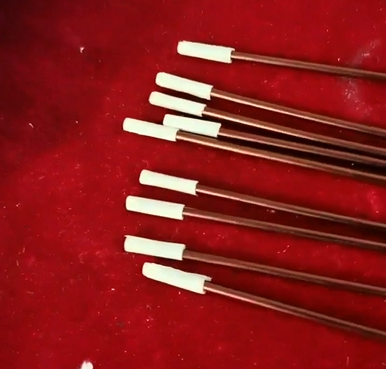

HH-345F https://youtube.com/shorts/c-zRBTqDM7c ends wrapping at copper conductor
HH-345F https://youtube.com/shorts/VEZ3gUqaYIs Fixture for processing
HH-345F https://youtube.com/shorts/5yfl-dC99cs slide ruler bar
Details About HH-345F Tape Spot Wrapping Machine
Technical Parameters
| Model | HH-345F Tape Spot Wrapping Machine |
| Wrapping Types | Spot/Point Wrapping |
| Operation | 4.3 inch touchscreen with PLC |
| Control Mode | Electricity, no need of air supply |
| Tape Width | 5~20MM |
| Capacity | 800~1200pcs/h, depending on operator’s speed |
| Forward Tape Length | 20~60MM |
| Cable or Tube Size | 1~7MM outer diameter |
| Tape Material | PVC tape,textile tape, cloth tape, felt tape,etc. |
| Isolation paper tape | Optional |
| Power | AC 220V \ 50HZ |
| Rated Power | 600W |
| Dimension | 400*350*350mm |
| Weight | 23KG |
