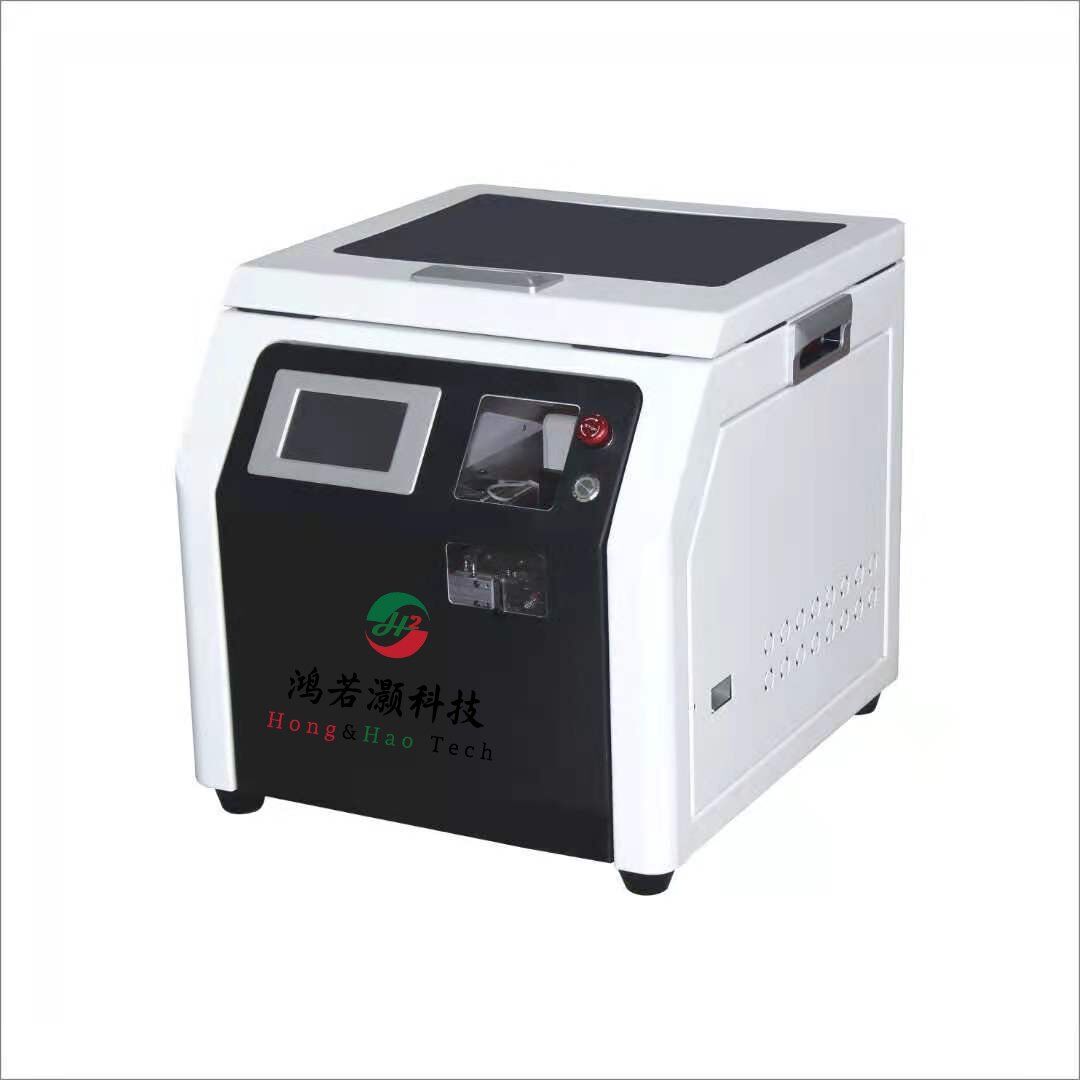

HH-365 Wire Stripping and Ferrule Crimping Machine
Product Description
For the sake of operators, this machine is a ferrule crimping machine with a high performance-to-price ratio and high quality. It realizes the integrated process of terminal feeding, wire cutting and stripping, ferrule inserting, and ferrule crimping. It features touch screen operation and digital adjustment, which means the setting parameters can be called directly if saved before.
Operating Video:
HH-365 https://youtu.be/14iPV9aqeEE 2.5 square mm ferrule crimping
HH-365 https://youtu.be/DdkUpI8Ma0o 6 square mm ferrule crimping

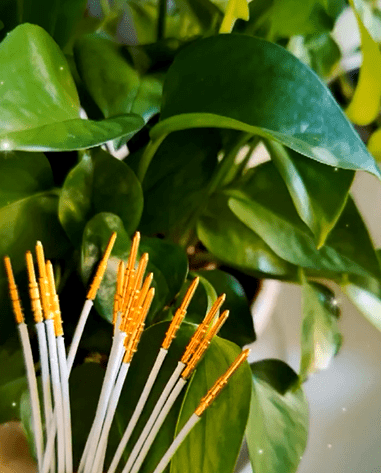

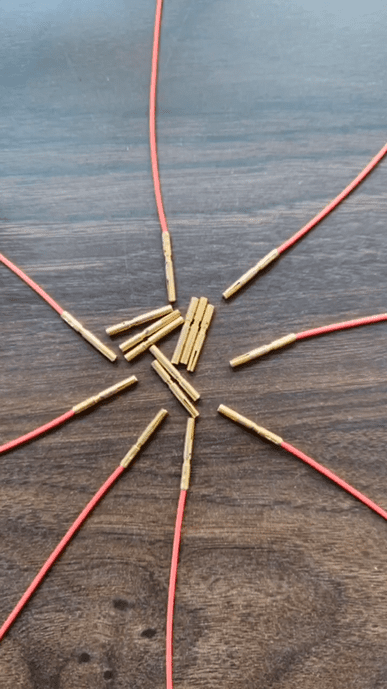

HH-365 https://youtu.be/LIFK_GoSKMs Golden needle aviation terminal crimping
HH-365 https://youtube.com/shorts/xQ3AO7b6_g8 Mini long crimping ferrules on thin wire
HH-365 https://youtube.com/shorts/r-wcn0FxEY8 aviation terminals
HH-365 https://youtube.com/shorts/72I06F2rM6g aviation terminals
HH-365 https://youtube.com/shorts/JbJy6XvbTUc aviation terminals
HH-365 https://youtube.com/shorts/loew_HtEdT8 aviation terminals
HH-365 https://youtube.com/shorts/4nPeRWNEN2o aviation terminals
HH-365 https://youtube.com/shorts/jSfEvjWSeng aviation terminals
HH-365 https://youtube.com/shorts/0Qq8zoKUAD4 mini grey ferrules
HH-365 https://youtube.com/shorts/GyamS1INYPY mini light blue ferrules
Details About HH-365 Wire Stripping and Ferrule Crimping Machine
Product Features

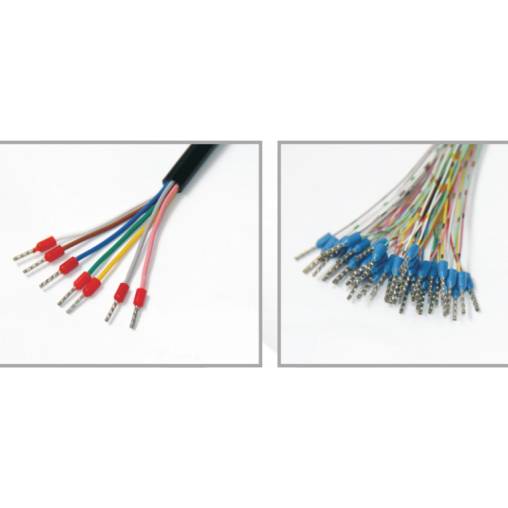

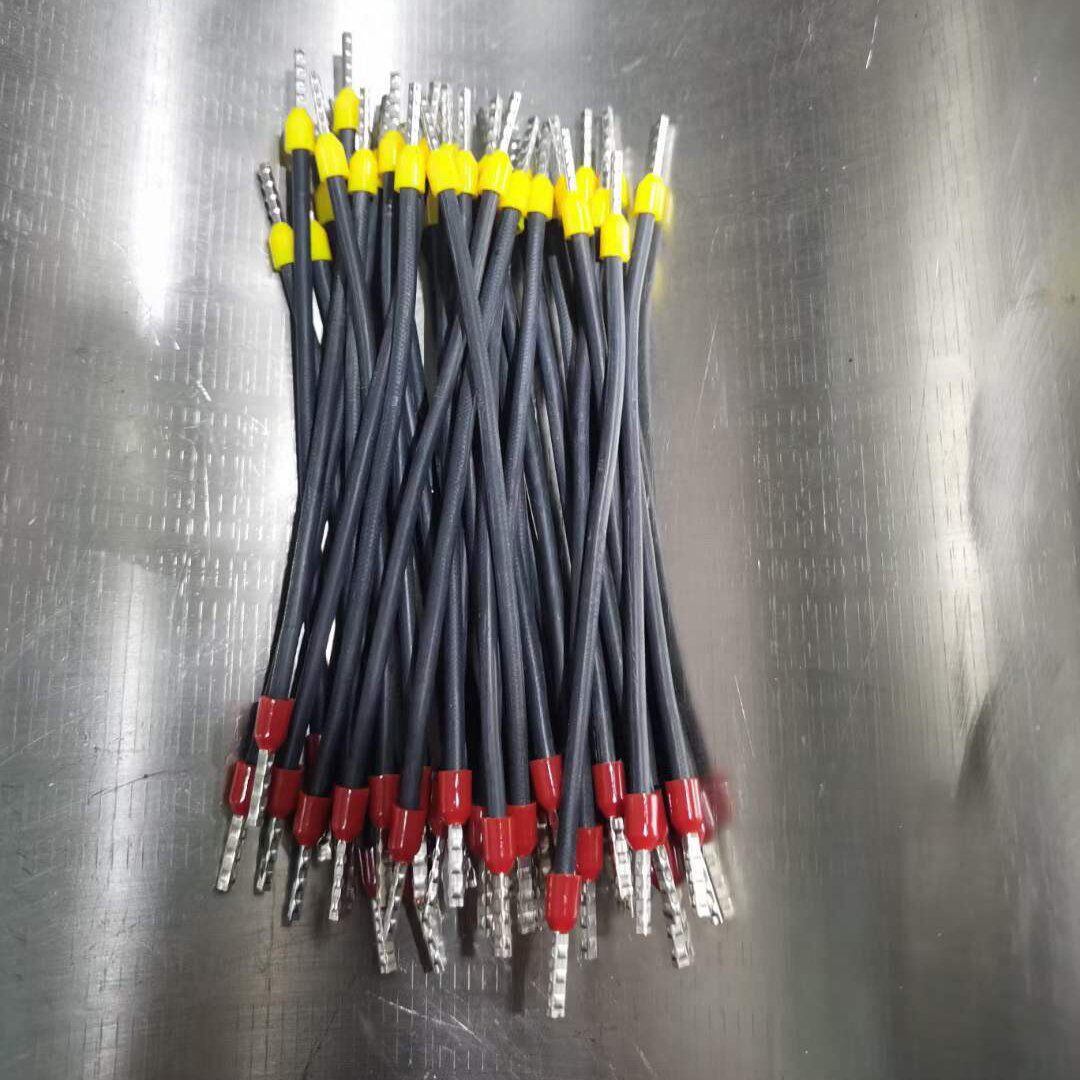

※ For the sake of operators, this machine is a ferrules terminal crimping machine with a high performance-to-price ratio and high quality. It realizes the integrated process of terminal feeding, wire cutting and stripping, ferrule inserting, and ferrule crimping. It features touch screen operation and digital adjustment, which means the setting parameters can be called directly if saved before ;
※ Integral enclosed appearance design, both pneumatic and electric drive ;
※ The machine mechanism is compact, the operating movement is flexible and the operation is safe;
※ Automatic trigger to start, fast and convenient and high production efficiency.
Technical Parameters
| Model | HH-365 Wire Stripping and Ferrule Crimping Machine |
| Display Language | English |
| Wire Size | 0.3～4mm²(Max. crimping length is 12mm) |
| Wire Length | Min.40mm |
| Capacity | 1000～1300pcs/h (2.5s for 4 movements of rotary stripping, twisting, ferrule inserting and crimping) |
| Mode of Control | Touch Screen and Programmable controller |
| Cutting Precision | 0.05～0.1mm |
| Positioning Precision | 0.05～0.1mm |
| Wire Clamping | Motor drive, clamping force controlled by a program |
| Crimping Force | Motor drive, crimping force controlled by a program |
| Data Storage | 100 processing data |
| Power and Air Supply | 220V, 50/60HZ, single phase；0.3～0.6mpa dry and clean air |
| Dimension | 430mm*505mm*425mm |
| Weight | About 68Kg |
