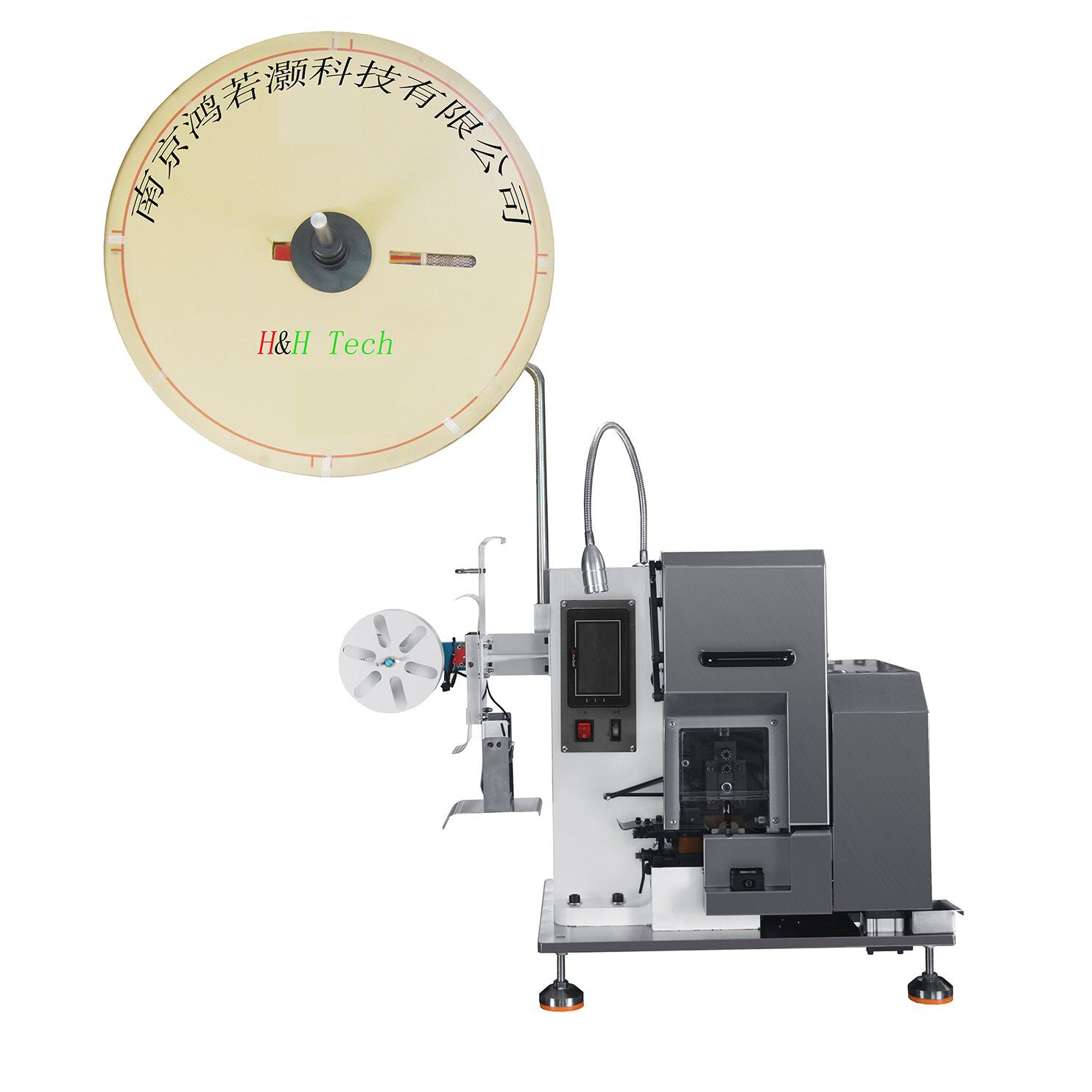

HH-380 Servo Wire Stripping and Terminal Crimping Machine
Product Description
This horizontal stripping and terminal crimping machine adopts a Mitsubishi servo motor, with strong applicator versatility, can simply realize wire clamping, stripping, cutting, and terminal crimping.
Operating Video:
HH-380 https://youtu.be/h2rZvi4ETnc
HH-380 https://youtu.be/DgY9Fw1qoUc
HH-380 https://youtu.be/JOfgluun3as 2 pins flat cable + cable splitting+ Ink sprinkling
Details About HH-380 Servo Wire Stripping and Terminal Crimping Machine
Product Features
※ This horizontal stripping and terminal crimping machine adopts Mitsubishi servo motor, with strong applicator versatility, can simply realize wire clamping, stripping, cutting, and terminal crimping;
※ Modular structure: easy to adjust and maintain, divided into crimping part, stripping part and wire clamping part;
※ The whole machine is controlled by PLC, and all movements can be controlled separately, so it is more convenient to debug.
Technical Parameters
| Model | HH-380 Servo Wire Stripping and Terminal Crimping Machine |
| Display Language | English |
| Wire Size | AWG26～AWG18 |
| Wire Length | Min.35mm |
| Wire Range | AV,AVS,AVSS,CAVUS,KV,KIV,UL,Teflon, Fiber, etc. |
| Terminal Type | Horizontal Linked Terminals |
| Terminal Length | 2.0～20.0mm |
| Cutting Precision | 0.05～0.1mm |
| Positioning Precision | 0.05～0.1mm |
| Stripping Length | 1.0～10.0mm |
| Crimping Force | 2T |
| Stroke | 30mm |
| Applicator Model | OTP Horizontal, European Pneumatic Horizontal Applicator |
| Crimping Drive Mode | Inverter drive and AC motor |
| Power and Air Supply | 220V, 50/60HZ, single phase；0.3～0.6mpa dry and clean air |
| Dimension | 730mm*350mm*700mm |
| Weight | About 100Kg |
