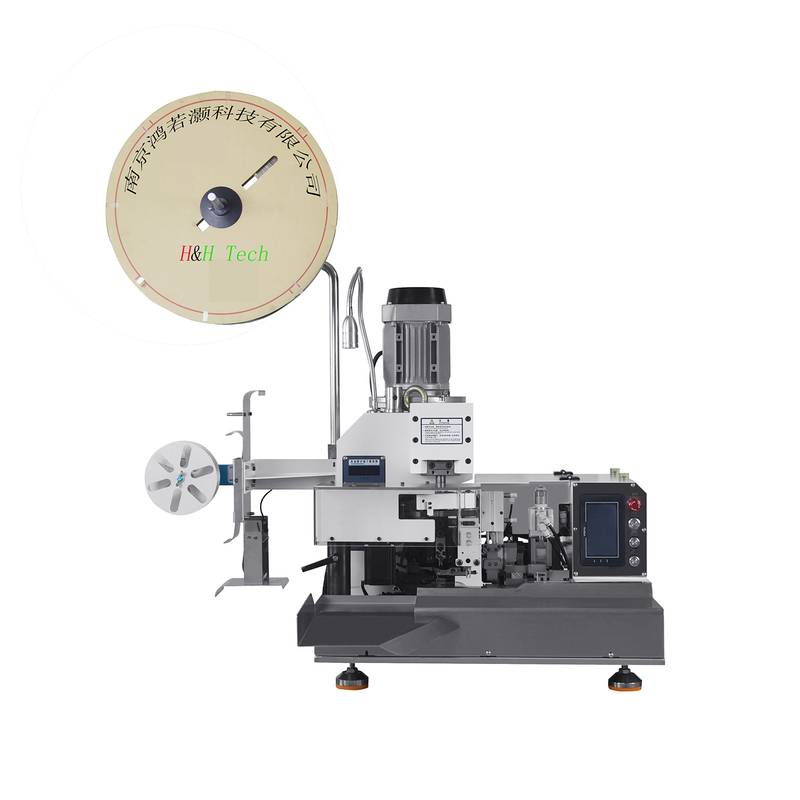

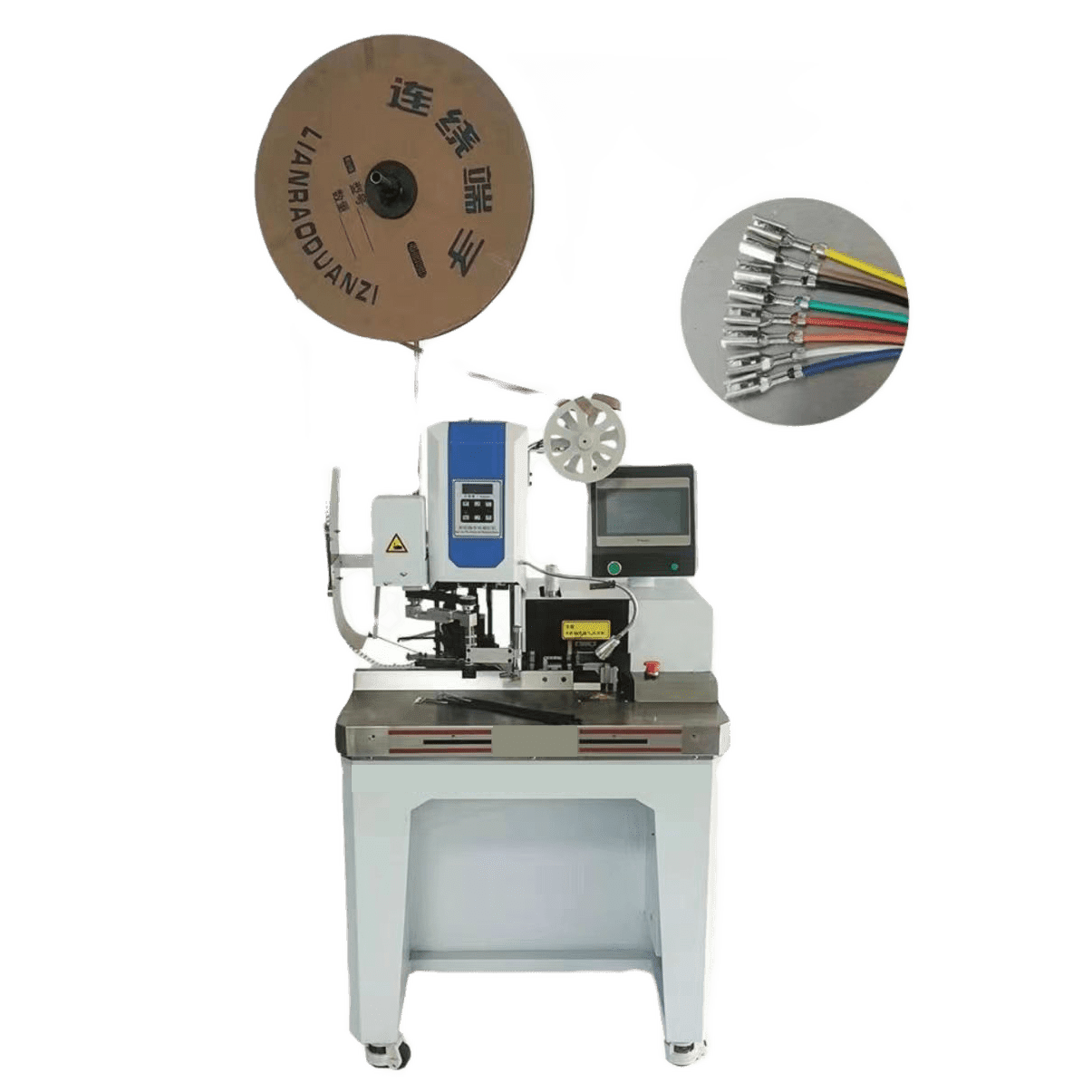

HH-390 Continuous Wire Strip and Terminal Crimp Machine

Product Description

It does clean stripping and accurate crimping sets up singles and continuous 2 to 18 cores crimping, and adjusts the working speed through the touch screen, as well as equips with wire scraps collection device.

Operating Video:

HH-390  https://youtube.com/shorts/hVL8-Ctogvg   16 inner cores

HH-390  https://youtu.be/BjGzOS8BB4k  6 inner cores

HH-390  https://youtu.be/X1fBV_aCYo4 21 Teflon inner cores

HH-390B   https://youtu.be/SFf8YoySfRs 6 inner cores

HH-390   https://youtube.com/shorts/mpiVQwj3GOw



Details About HH-390 Continuous Wire Strip and Terminal Crimp Machine

Product Features

※ The use of advanced electronic control technology, equipped with a high-precision control module and transmission mechanism, so that multi-core wire stripping and terminal crimping can be completed at one time. It has the characteristics of low noise, low power consumption, high efficiency, and so on;

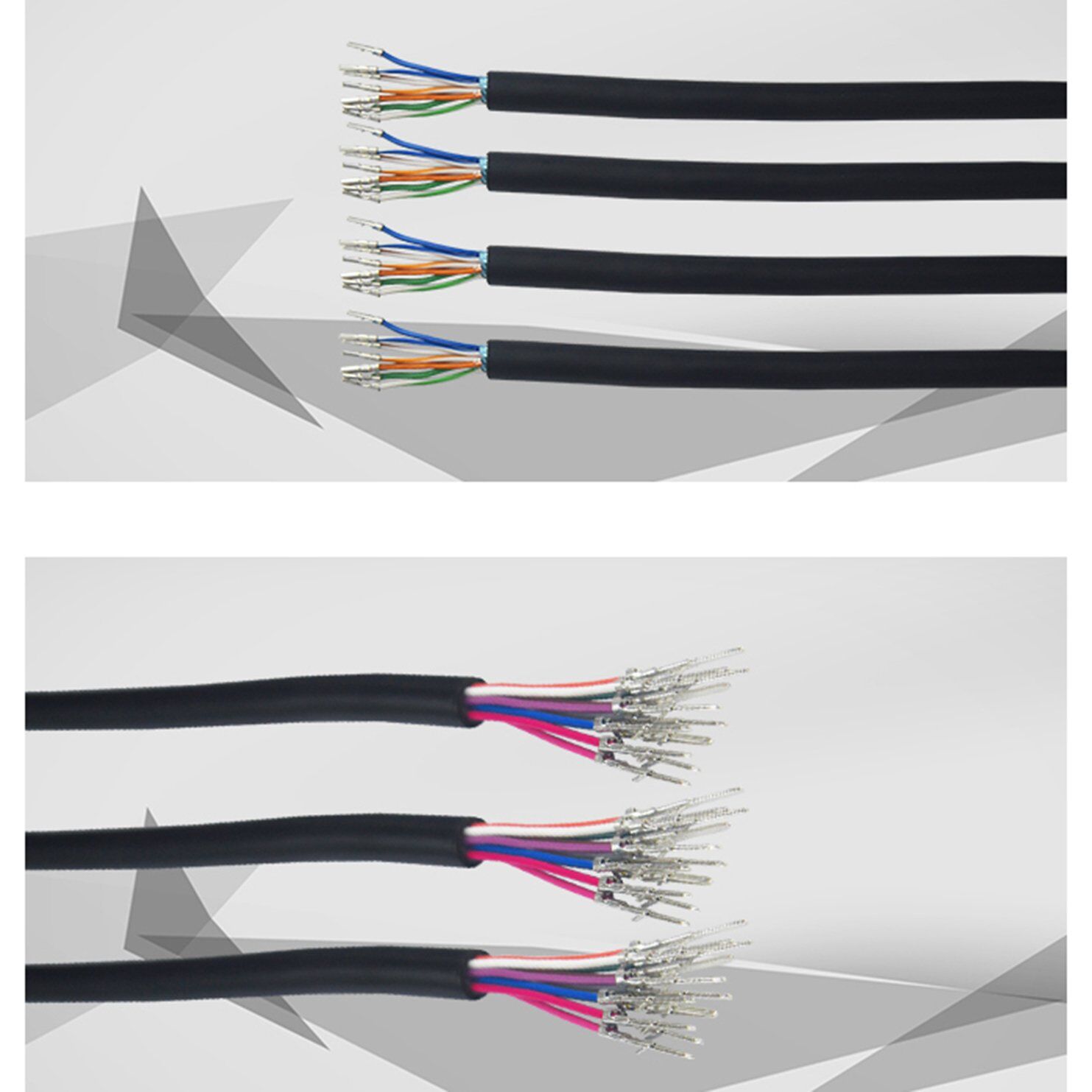

※ The applicators are changeable and the stripping depth is adjustable. It can be used for independent stripping and terminal crimping. It has strong production applicability and is suitable for terminal crimping of inner cores of sheathed cable between AGW28 to AWG16;

※ Adopts PLC program control, 7-inch touch screen interface, stripping motor translating by screw rod with fast speed and accurate positioning, and durable pneumatic and air valve;

※ It does clean stripping and accurate crimping sets up singles and continuous 2 to 12 cores crimping, and adjusts the working speed through the touch screen, as well as equips with wire scraps collection device.

Technical Parameters

Model HH-390 Continuous Wire Stripping and Terminal Crimping Machine
Display Language English
Wire Diameter Φ0.8~Φ4mm
Inner core no. 2~18 pins
Capacity 12 inner cores:5500 pcs/h
Sheath Stripping Length Min. 30mm
Stripping Length 1.0~10mm
Cutting Precision 0.05~0.1mm
Positioning Precision 0.05~0.1mm
Power and Air Supply 220V, 50/60HZ, single phase;0.3~0.6mpa dry and clean air
Crimping Force 2T
Stroke 30mm
Terminal Type Horizontal or End-feed Linked Terminals
Dimension 650mm*800mm*1450mm
Weight About 95Kg
