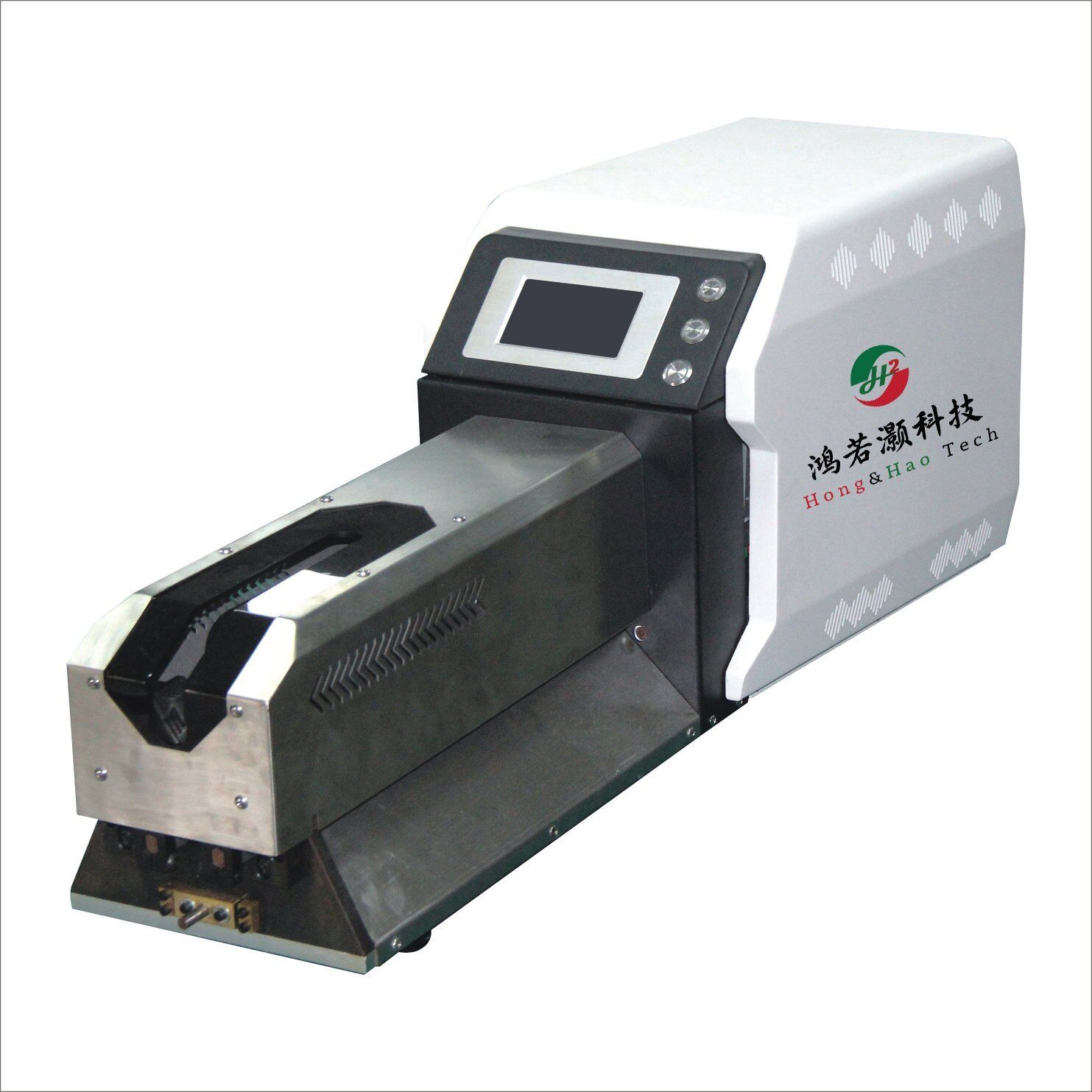

HH-400C Computerized Cut and Strip Machine for Coaxial Cable
Product Description

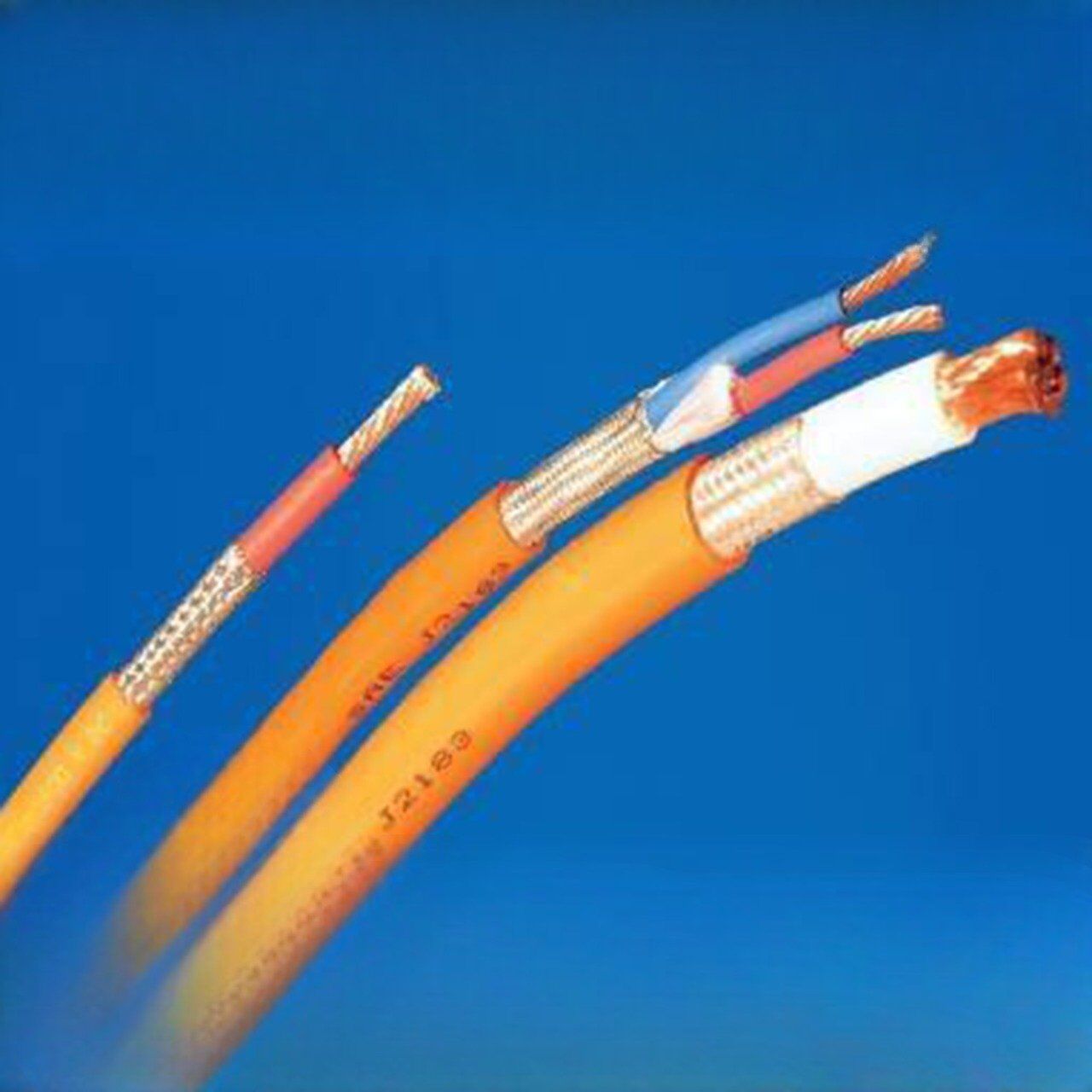

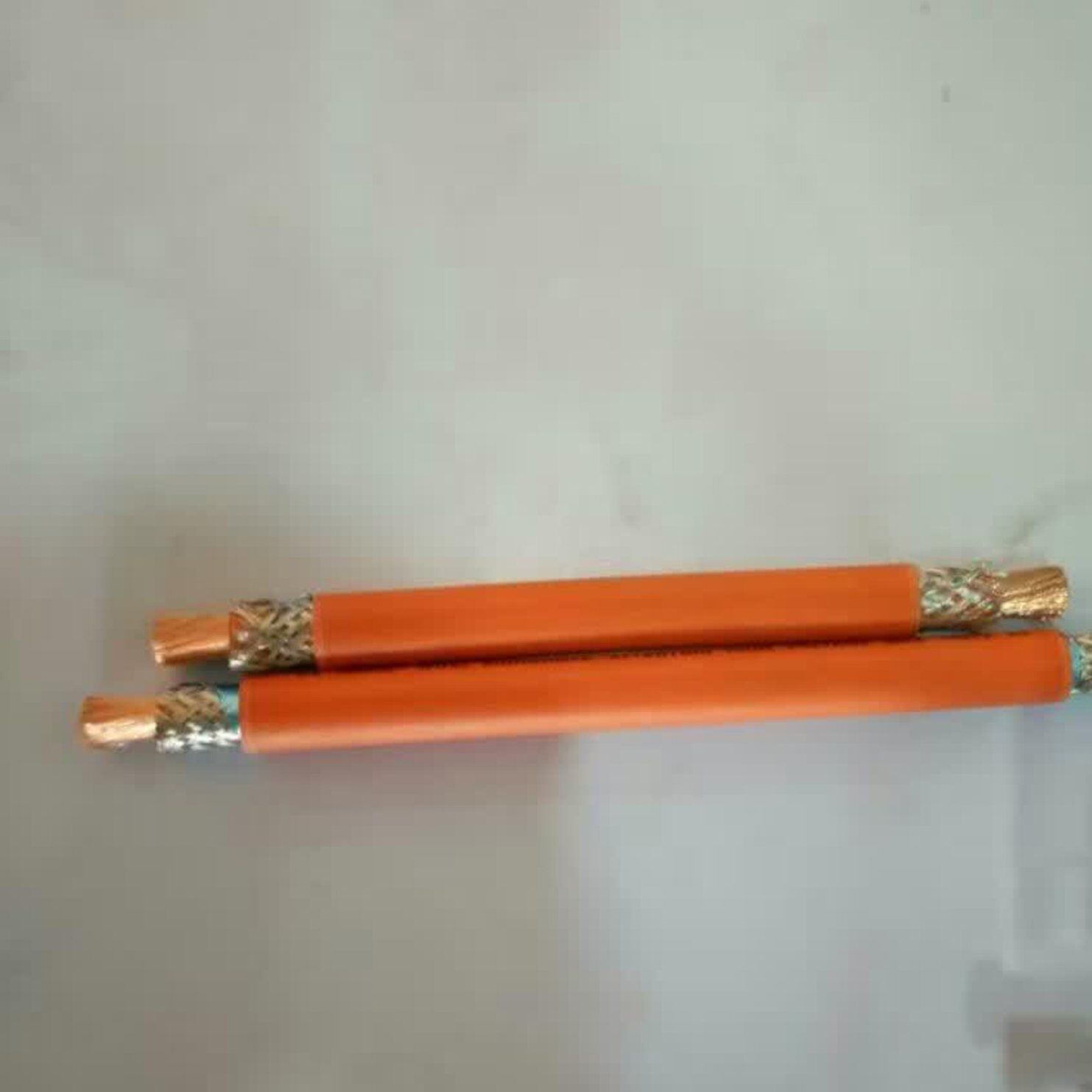

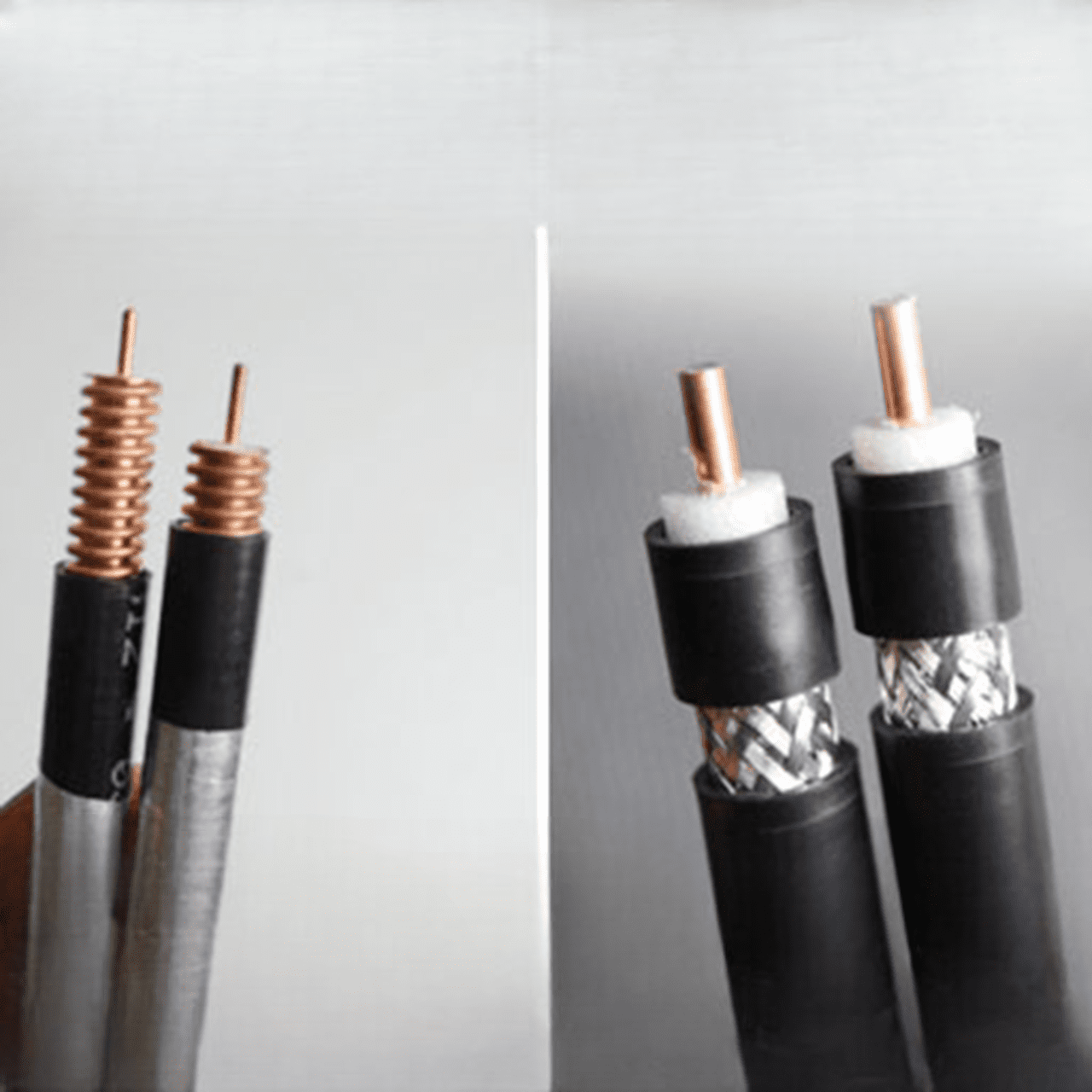

HH-400C is mainly used for multi-layer stripping of middle/large sizes of co- and tri-axial cable, multi-core cable and single wire, etc.
Operating Video:
HH-400C https://youtu.be/4cVNK4poVyk
Details About HH-400C Computerized Cut and Strip Machine for Coaxial Cable
Product Features
※ HH-400A/B/C are mainly used for multi-layer stripping of small/middle/large sizes of co- and tri-axial cable, multi-core cable and single wire, etc.;
※ Using touch screen interface to digital input stripping depth/speed/distance and rotating time, etc.， it may save up to 99 kinds of processing data;
※ The most advanced rotary tool holder is adopted to improve the processing precision and speed;
※ By using a specific axis positioning device and a rotary tool, HH-400 series can strip up to 10layers coaxial cable and various types of wires without changing the blades;
※ Wire clamping device can do automatic centering, driven by a motor, and its clamping strength is controlled by a program.
Technical Parameters
| Model | HH-400C |
| Wire Diameter | Φ3.5～Φ23mm |
| Capacity | 600～700pcs/h |
| Stripping Length | 0.1mm～200mm |
| Dimension | 960mm*285mm*380mm |
| Weight | About 51Kg |
| Cutting Precision | 0.01mm |
| Voltage | AC 220/110V 50/60HZ |
| Stripping method | Rotary Cutter |
| Clamping strength | Controlled by motor with 10 different levels |
| Stripping Layers | Max. 10 layers |
| Cutter Material | Import Tungsten Steel |
| Noise decibel | 50dB(A) |
| Display Language | English |
| Working Environment | -5℃～45℃, dry and stable table |
