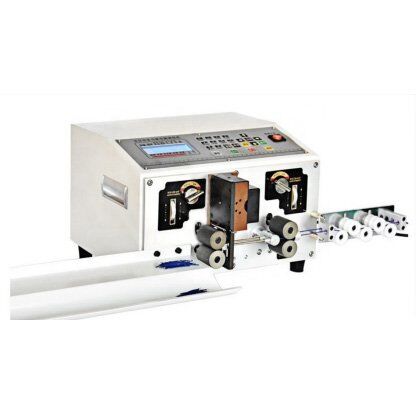

HH-433 Computerized Cut and Strip Machine for 2*2.5mm² Wires
Product Features
※ This machine features computerized control, easy button operation, stable working performance. And it can process 2 wires at the same time with high efficiency;
※ The length of wire head, wire end and total can be set as required within the range;
※ The speed of wire feeding, wire cutting and stripping could be separately set to reach the best effect of stripping;
※ It has the function of setting total quantity, batch quantity, time delay, and intermediate stripping, etc.;
※ Motor driver has high precision and long service life, and the system can store 99 kinds of different wire data.
Details About HH-433 Computerized Cut and Strip Machine for 2*2.5mm² Wires
Technical Parameters
| Machine Model | HH-433 Computerized Cutting and Stripping Machine for 2.5mm² Double Wires |
| Display Language | English |
| Max. Capacity | Around 6000～15000 pieces/h |
| Wire Range | 0.1mm²～2.5mm² |
| Cutting Length | 10～9999mm |
| Cutting Precision | ﹤± (0.1+0.005*L), L= Cutting Length |
| Stripping Length | 1.0～30mm（Customization is accepted） |
| Cutter Material | Tungsten steel and high speed steel |
| Feeding Speed | 2m/s |
| Drive Mode | 4 wheels driven |
| Power & Air Supply | AC 220V, 50/Hz, 300W |
| Dimension | 420mm*340mm*280mm |
| Weight | About 30Kg |
