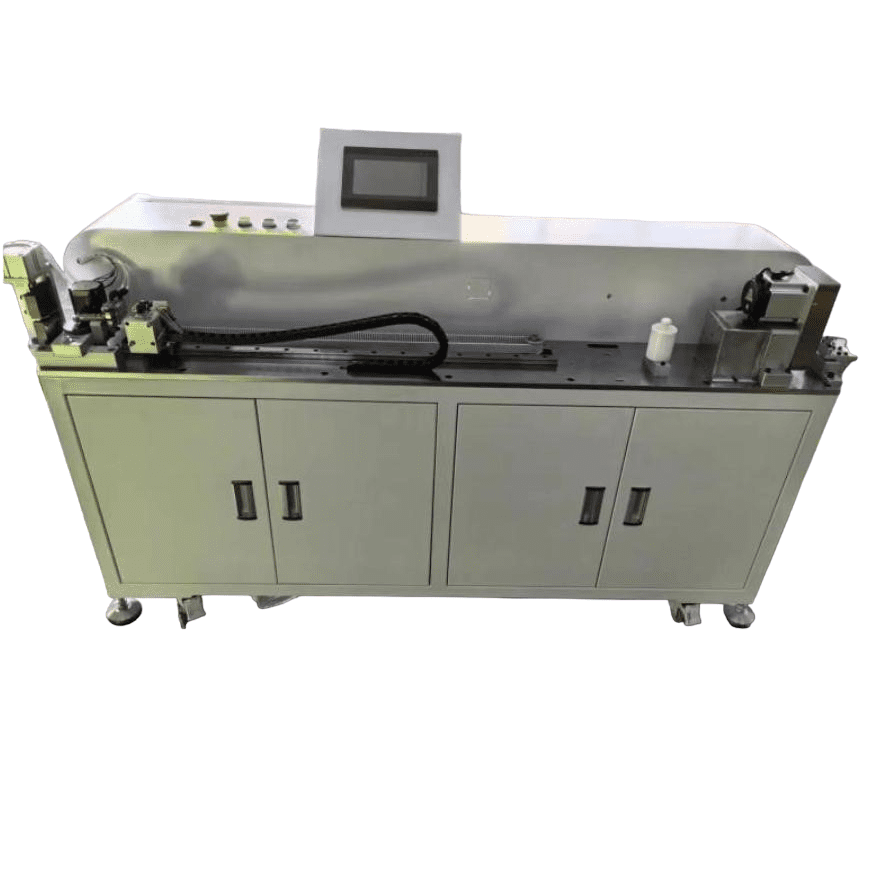

HH-455 Fully Automatic Enamelled Wire Cutting and Stripping Machine
Product Features
※ 7-inch computer touch screen, English operation menu, easy to learn and use.
※ Program and materials’ change with high speed, high efficiency, high precision, high speed and convenient maintenance.
※ The machine adopts servo control: 3 sets of servo motor / drive ;
※ Full CNC debugging: bending angle, cutting length, peeling length ;
※ The machine mechanism is compact, the operating movement is flexible and the operation is safe.
Operating Videos
HH-455 https://youtube.com/shorts/Wz6eQHxCYvA with bending function
Details About HH-455 Fully Automatic Enamelled Wire Cutting and Stripping Machine
Technical Parameters
| Model | HH-455 Fully Automatic Enamelled Wire Cutting and Stripping Machine |
| Display Language | English |
| Wire Size | OD0.5～OD3mm (customization is accepted) |
| Cutting Length | 1~9999mm |
| Stripping Length | 1~200mm at A side, 1~100mm at B side (customization is accepted) |
| Capacity | 3000pcs/h (100mm length cutting, wire diameter 2.0mm, and stripping length 10mm) |
| Mode of Control | Touch Screen and Programmable controller |
| Cutting Precision | ﹤± (0.1+0.005*L), L= Cutting Length |
| Stripping Precision | ±1mm |
| Power and Air Supply | 220V, 50/60HZ, single phase；0.3～0.6mpa dry and clean air |
| Dimension | 2650mm(length)*400mm(width)*1120mm(height) |
| Weight | About 100Kg |
