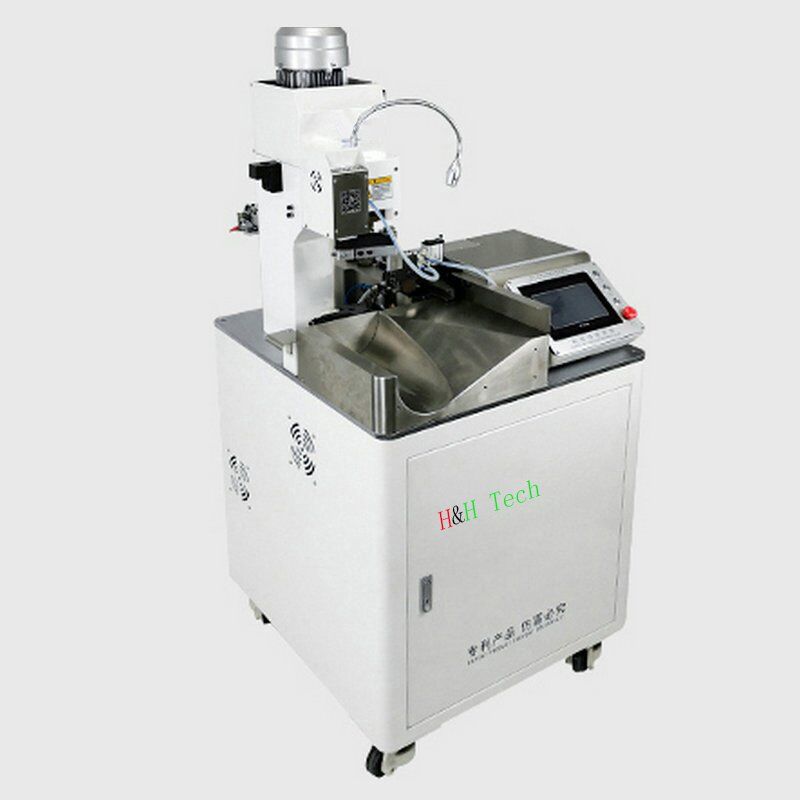

HH-550 Fully-automatic Single End Terminal Crimp Machine
Product Description
HH-550 adopts single end terminal crimping mode to realize its The machine adopts Mitsubishi motors and Taiwan guide rail and screw rod, etc., to make the machine durable, accurate, and efficient. The touch screen setting is adopted to realize the easy function conversion, which is simple and convenient.
Operating Video:
HH-550 https://youtu.be/AVnpalZygmE
HH-550 https://youtu.be/9OaM-GvGfUU 2-Pin Flat Cable
HH-550 https://youtu.be/UyFfxf6wxOk pre-insulated terminals in disc
HH-550 https://youtu.be/yndEBmPWy5s Loose pre-insulated terminals
HH-550 https://youtu.be/MNxtyj-YSs8 2 PIN flat cable+wire cutting at different length
HH-550 https://youtu.be/EGGm8KdDgFQ Loose pre-insualted tubular terminals
HH-550C https://youtu.be/qvQniPU-Lns terminal crimping and tinning
HH-550C https://youtu.be/17xh6tvV8OE bowl feeding terminals and tinning

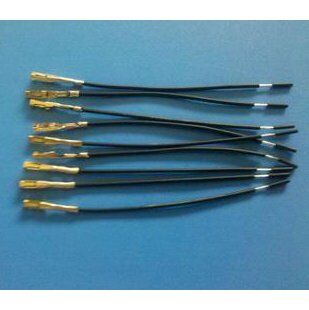

Details About HH-550 Fully-automatic Single End Terminal Crimp Machine
Product Features
※ 100 sets of processing programs can be stored, replacing processes and materials quickly;
※ Adopting high-speed DSP distribution control system, silent hybrid stepping drive, high precision, and fast speed;
※ Linear catheter feeding material, wire feeding without blocking, wire harness placement more orderly;
※ Twisting structure has an automatic reset function, diameter size does not need adjustment, realizes universal wire twisting;
※ Automation: wire dividing, cutting, stripping, crimping are finished at the same time without any labor force, and save the production cost;
※ Simple operation: parameters setting by touching the screen, the operation is easy to learn, one worker can operate several machines at the same time.
Technical Parameters
| Machine Model | HH-550 Fully-automatic Single End Terminal Crimping Machine |
| Display Language | English |
| Max. Capacity | Around 4500 pieces/h |
| Wire Range | AWG#32～AWG#14（0.035mm²～2.5mm²） |
| Insulated wire Length | 40～9999mm |
| Cutting Precision | ﹤± (0.1+0.005*L), L= Cutting Length |
| Stripping Length | A: 0.1～15mm; B: 0.1～8mm |
| Wire twisting length | 2～12mm |
| Crimping force | 1.5T(2.0T optional) |
| Detecting functions | Low air pressure, wire lacking and knotting, abnormal crimping |
| Power & Air Supply | AC 220V, 50/60Hz, Single phase, 0.5Mpa |
| Dimension | 700mm*600mm*1400mm |
| Weight | About 200Kg |
