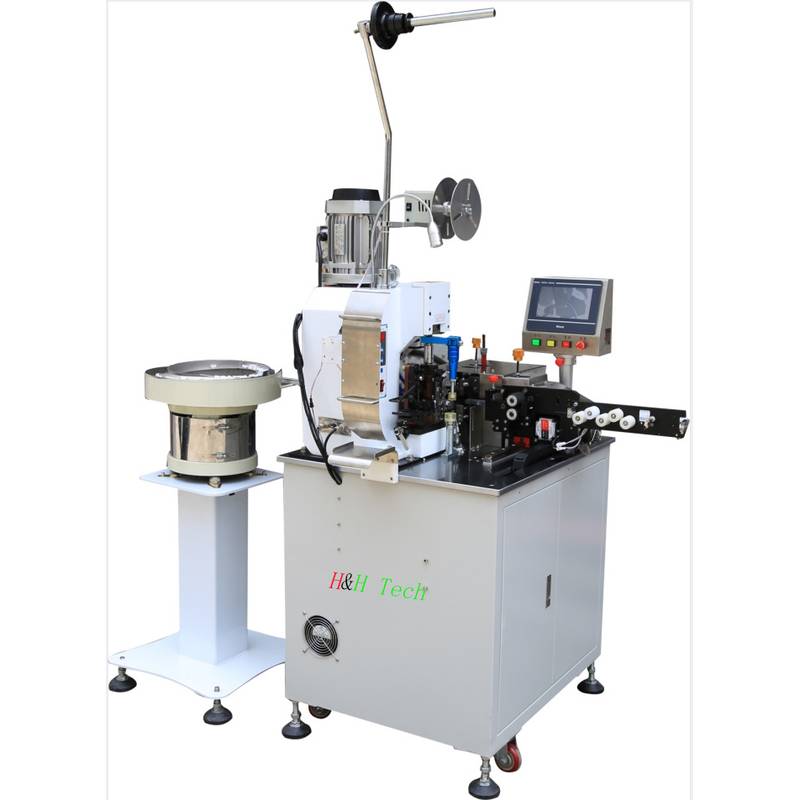

HH-552 Fully-automatic Single End Terminal Crimp & Housing Insert Machine
Product Description
HH-552 adopts single end terminal crimping and housing inserting mode to realize its The machine adopts Mitsubishi motors and Taiwan guide rail and screw rod, etc., to make the machine durable, accurate, and efficient. The touch screen setting is adopted to realize the easy function conversion, which is simple and convenient.
Operating Video:
HH-552 https://youtu.be/F2CDLzgIVcs 2P receptacle housing insertion
HH-552 https://youtu.be/OhZemrHDKRA 3P receptacle housing insertion
HH-552 https://youtu.be/dlI7sZgp2tA 4P receptacle housing insertion
HH-552 https://youtube.com/shorts/OxLVmmBlHX0 2 pin & hst insert
HH-552 https://youtube.com/shorts/EpAFA4YT55s 4P
Details About HH-552 Fully-automatic Single End Terminal Crimp & Housing Insert Machine
Product Features

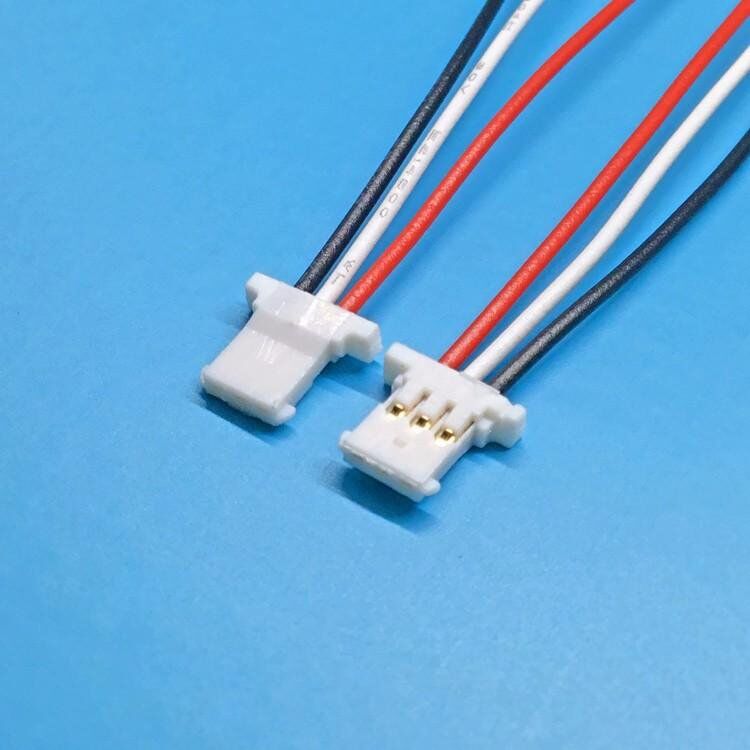

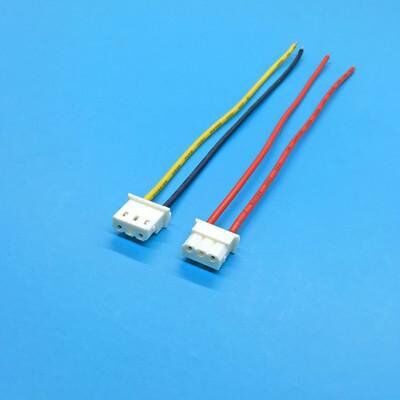

※ Wide applying range: PH、XH、EH、ZH、SCN、SM、VH, DuPont and other connectors and communication terminals;
※ Equipment function: the front end is terminal crimping and housing inserting, and the back end is cutting and stripping; and all processes are completed automatically, saving production costs for customers;
※ Good stability: the crimping adopts eccentric shaft and cam structure, the crimping force of the terminal is even and balanced, the terminal is crimped neatly, and the consistency is good;
※ High precision: using servo motors to control positioning and crimping, housing insertion to achieve accurate positioning;
※ Simple operation: Use the touch screen to operate, so that parameter setting and operation is simple, can be easily learned, ordinary staff only need simple training, and one person can operate several equipment.
Technical Parameters
| Machine Model | HH-552 Fully-automatic Single End Terminal Crimping & Housing Inserting Machine |
| Display Language | English |
| Max. Capacity | Around 850 pieces/h for 4P |
| Applied Wire | Electronic wire, high-temp wire, etc. |
| Wire Range | AWG#22～AWG#18 |
| Insulated wire Length | 60～800mm(Longer may be customized) |
| Cutting Precision | ﹤± (0.1+0.005*L), L= Cutting Length |
| Stripping Length | 1～12mm |
| Wire twisting length | 2～8mm |
| Crimping force | 2.0T |
| Detecting functions | Low air pressure, wire lacking and knotting, terminal lacking |
| Power & Air Supply | AC 220V, 50Hz, Single phase, 0.5Mpa |
| Dimension | 800mm*700mm*1500mm |
| Weight | About 300Kg |
