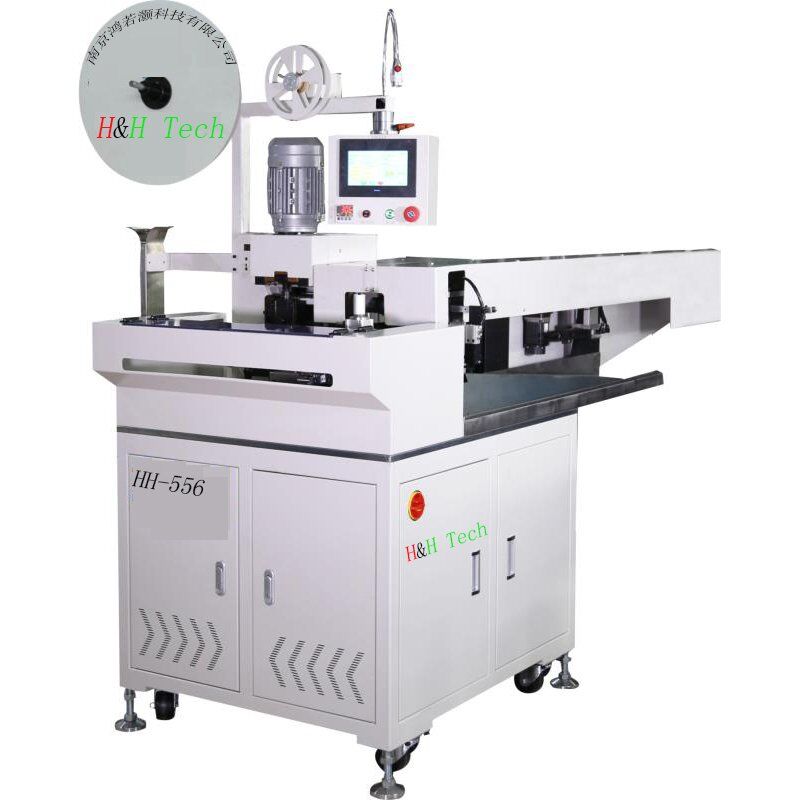

HH-556 Automatic Flat Cable Terminal Crimping and Tinning Machine
Product Description
HH-556 adopts flat cable single end terminal crimping and tinning mode to realize its The machine adopts servo and stepping motors and Taiwan guide rail and screw rod, etc., to make the machine durable, accurate, and efficient. The touch screen setting is adopted to realize the easy function conversion, which is simple and convenient.
Operating Video:
HH-556 https://youtu.be/dmyJOO2LCpI
HH-556 https://youtu.be/daXdMBHO5IQ
Details About HH-556 Automatic Flat Cable Terminal Crimping and Tinning Machine
Product Features
※ It is used for ribbon cable, one end interval terminal crimping, one end twisting and tinning;
※ Normally it can process 2pcs ribbon cable at the same time, 5pcs 2pin ribbon cable or 6-8pcs electronic wires;
※ This machine could change the applicator, simple debugging; it uses a servo motor to control the whole process of wire feeding, wire dividing, wire cutting, and wire stripping;
※ It uses the servo motor driver to control the movement of the ribbon cable, high precise terminal crimping control;
※ Automation: wire dividing, cutting, stripping, crimping are finished at one time without any labor force, and save the production cost.
※ Good stability: eccentric shaft and cam transmission structure, balance crimping force, tide crimping effect, and high rate of finished products;
※ Simple operation: parameters setting by touching the screen, the operation is easy to learn, one worker can operate several machines at the same time.
Technical Parameters
| Machine Model | HH-556 Fully-automatic Flat Cable Single End Terminal Crimping and Tinning Machine |
| Display Language | English |
| Max. Capacity | Around 700 pieces/h for 12 Pin flat cable |
| Wire Range | Flat cable AWG#30～AWG#18;
Electronic wire AWG#28～AWG#18 |
| Insulated wire Length | 45～600mm(May be customized) |
| Cutting Precision | ﹤± (0.1+0.005*L), L= Cutting Length |
| Stripping Length | A: 0.1～5mm; B: 0.1～10mm |
| Max. wire width | 28mm |
| Wire Twisting Length | 3～8mm |
| Max. wire pins | 24 pin |
| Power & Air Supply | AC 220V, 50Hz, Single phase, 0.5Mpa |
| Dimension | 940mm*1100mm*1850mm |
| Weight | About 500Kg |
| Functions | Wire cutting, splitting & stripping, tining and terminal crimping. |
