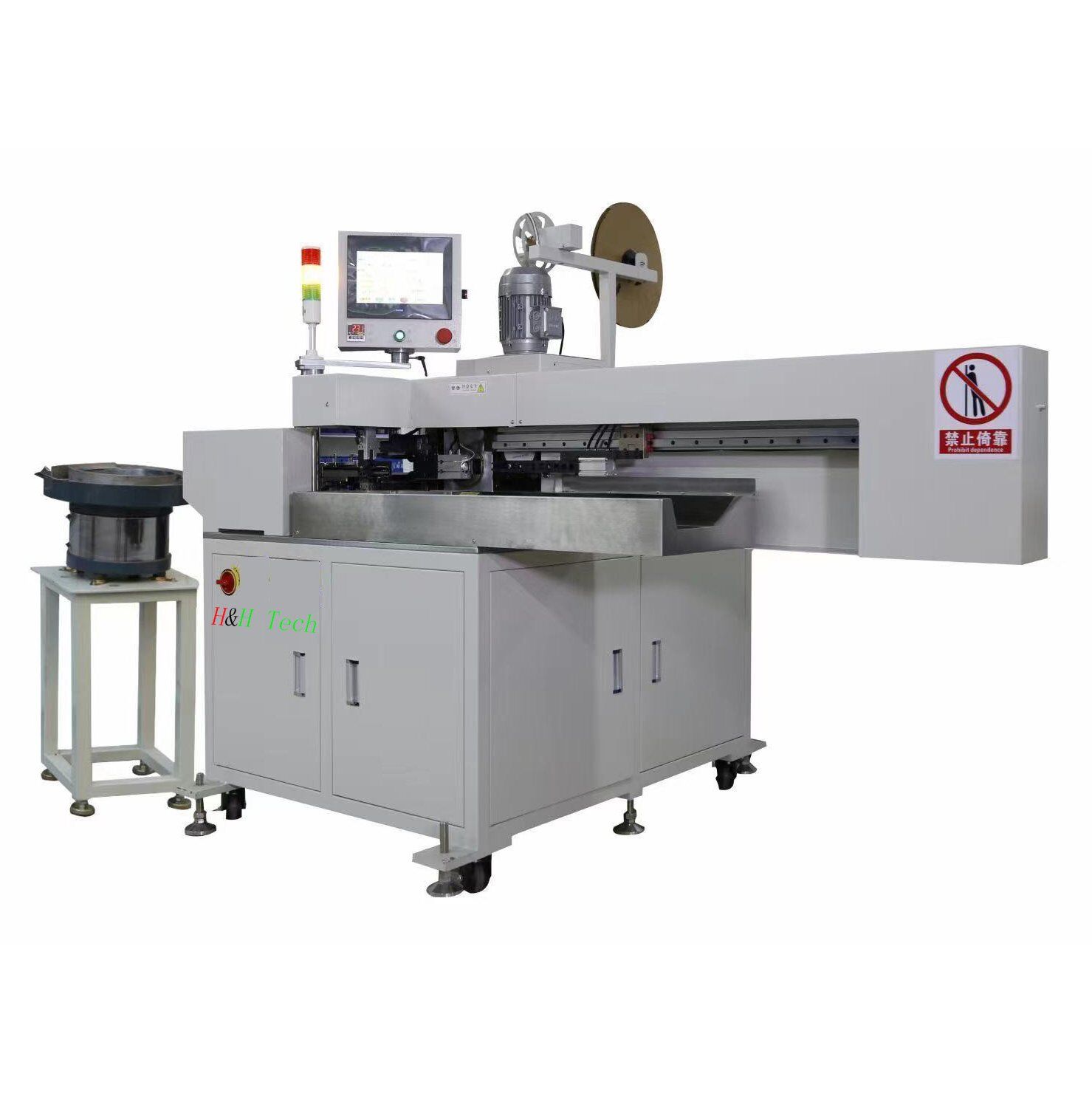

HH-558 Fully-automatic Flat Cable Single End Terminal Crimp & Housing Insert and Tinning Machine
Product Description
HH-558 adopts flat cable single end terminal crimping & housing inserting and tinning mode to realize its The machine adopts servo motors and Taiwan guide rail and screw rod, etc., to make the machine durable, accurate, and efficient. The touch screen setting is adopted to realize the easy function conversion, which is simple and convenient.
Operating Video:
HH-558 https://youtu.be/hOzCHx3DSkU 4 wire processing with stranding
HH-558 https://youtu.be/faCAcHZs5oE 4 wire processing with stranding
HH-558 https://youtu.be/PuqFqo3qRwg flat/ribbon cable
Details About HH-558 Fully-automatic Flat Cable Single End Terminal Crimp & Housing Insert and Tinning Machine
Product Features
※ Wide applying range: PH、XH、EH、ZH、SCN、SM、VH, DuPont and other connectors and communication terminals;
※ Equipment function: the front end is terminal crimping and housing inserting, and the back end is tinning; and all processes are completed automatically, saving production costs for customers;
※ Good stability: the crimping adopts eccentric shaft and cam structure, the crimping force of the terminal is even and balanced, the terminal is crimped neatly, and the consistency is good;
※ High precision: using servo motors to control cutting, wire splitting & stripping, positioning and crimping, housing insertion to achieve accurate positioning;
※ Simple operation: Use the touch screen to operate, so that parameter setting and operation is simple, can be easily learned, ordinary staff only need simple training, and one person can operate several equipment.
Technical Parameters
| Machine Model | HH-558 Fully-automatic Flat Cable Single End Terminal Crimping & Housing Inserting and Tinning Machine |
| Display Language | English |
| Max. Capacity | Around 500 inserts/h/110mm |
| Wire Range | 2P～12P Flat cable/Electronic wire AWG#28～AWG#22 |
| Insulated wire Length | 45～1000mm(May be customized) |
| Cutting Precision | ﹤± (0.1+0.005*L), L= Cutting Length |
| Stripping Length | A: 0.1～5mm; B: 0.1～10mm, wire twisting: 2～8mm |
| Housing Types | 1.25/1.5/2.0/2.5,etc. |
| Housing Inserting Pins | 2～12P(1～4 housings) |
| Special Functions | Working stations are optional; wire stranding is optional, max. 12 electronic wires |
| Power & Air Supply | AC 220V, 50Hz, 15A, 0.4～0.6 Mpa, dry and clean air |
| Dimension | 2043mm*1570mm*1600mm |
| Weight | About 600Kg |
