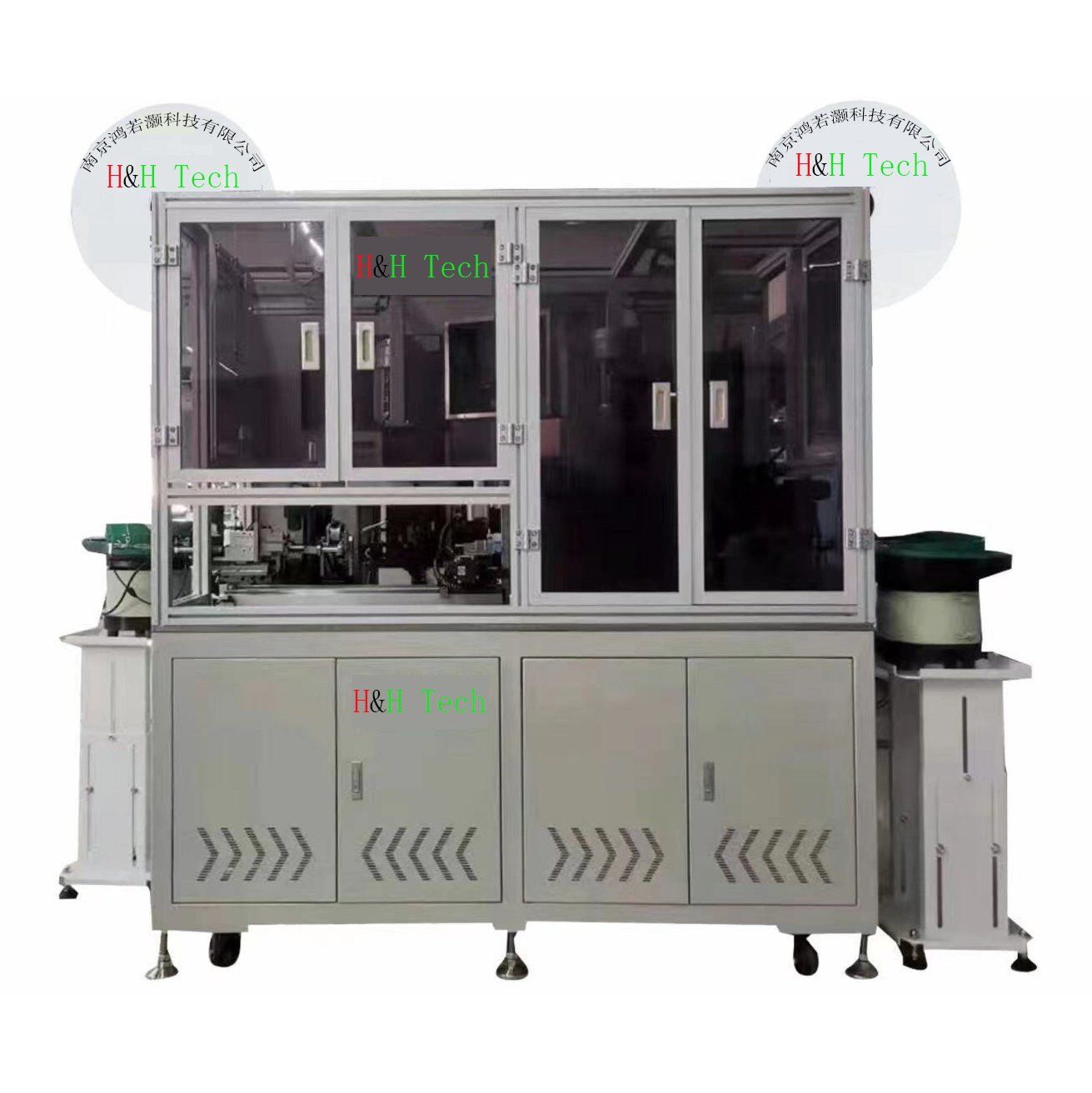

HH-559 Fully-automatic Flat Cable Double Ends Terminal Crimp & Housing Insert Machine
Product Description
HH-559 adopts flat cable double ends terminal crimping & housing inserting mode to realize its The machine adopts servo motors and Taiwan guide rail and screw rod, etc., to make the machine durable, accurate, and efficient. The touch screen setting is adopted to realize the easy function conversion, which is simple and convenient.
Operating Video:
HH-559 https://youtu.be/VD2cF2oj2d0 Flat cable processed
HH-559 https://youtu.be/wUjR3nd1YCI Conveyor installed
HH-559 https://youtu.be/Ma-VJfsw_Ho flat cable turnaround processing
HH-559 https://youtube.com/shorts/p1yMTUbz9P4 flat cable crimp and housing insert
Details About HH-559 Fully-automatic Flat Cable Double Ends Terminal Crimp & Housing Insert Machine
Product Features
※ Wide applying range: PH、XH、EH、ZH、SCN、SM、VH, DuPont and other connectors and communication terminals;
※ Cost saving: double-end terminal crimping and housing insertion, all processes are completed automatically, and saving production costs for customers;
※ Good stability: the crimping adopts eccentric shaft and cam structure, the crimping force of the terminal is even and balanced, the terminal is crimped neatly, and the consistency is good;
※ High precision: using servo motors to control cutting, wire splitting & stripping, positioning and crimping, housing insertion to achieve accurate positioning;
※ Simple operation: parameter setting and operation is simple, can be easily learned, ordinary staff only need simple training, and one person can operate several equipment.
Technical Parameters
| Machine Model | HH-559 Fully-automatic Flat Cable Double Ends Terminal Crimping & Housing Inserting Machine |
| Display Language | English |
| Max. Capacity | Around 300～380 pieces/h/110mm |
| Wire Range | 2P～12P Flat cable/Electronic wire AWG#28～AWG#22 |
| Insulated wire Length | 45～1000mm(May be customized) |
| Cutting Precision | ﹤± (0.1+0.005*L), L= Cutting Length |
| Stripping Length | A: 0.1～10mm; B: 0.1～5mm |
| Housing Types | 1.25/1.5/2.0/2.5 |
| Housing Inserting Pins | 2～8P(1～4 housings) |
| No Housing Inserting Pins | 20P（several pieces may be processed at same time） |
| Special Functions | Working stations are optional; rotary crimping is optional |
| Power & Air Supply | AC 220V, 50Hz, 30A, 0.4～0.6Mpa, dry and clean air |
| Dimension | 1700mm*3350mm*1900mm |
| Weight | About 1300Kg |
