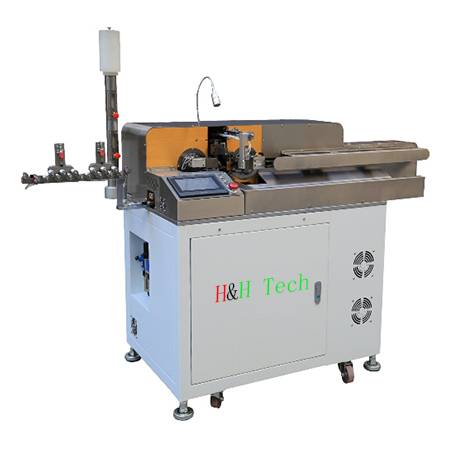

HH-663 Fully-automatic Dual Ends Wire Cut, Twist and Solder Machine
Product Description
HH-663 adopts an 8-wire double ends tinning mode to realize its functions. The machine adopts Mitsubishi servo motors and Taiwan guide rail and screw rod, etc., to make the machine durable, accurate, and efficient. The touch screen setting is adopted to realize the easy function conversion, which is simple and convenient.
Operating Video:
HH-663 https://youtu.be/5Dmxv7OooDo 4 electronic wires
HH-663 https://youtu.be/LjaUxJQ7H5w flat sheath cable
HH-663 https://youtu.be/hDXau1VgFOQ flat/ribbon cable
HH-663 https://youtu.be/jWotPDAoFGw round sheath cable
HH-663 https://youtu.be/EFlspqpjn-g SILICONE WIRE
HH-663 https://youtu.be/JxZYz-xZxLo Servo motors drive
Details About HH-663 Fully-automatic Dual Ends Wire Cut, Twist and Solder Machine
Product Features
※ Using 6 Japanese Mitsubishi servo motors to achieve accuracy, efficiency and stability;
※ It features exquisite and compact design, small footprint, touch screen operation menu, easy to learn and use;
※ It features fast replacement of process and materials, high efficiency, high precision, and convenient maintenance;
※ Pneumatic components include electromagnetic raft, cylinder, air pressure detection device are from SMC;
※ Color touch screen is from Taiwan KINCO;
※ Blade cutting size, cutting length, stripping length, twisted wire strength, flux and tin dipping depth, etc., can all be realized by the digital operation of the touch screen.
Technical Parameters
| Machine Model | HH-663 Fully-automatic Double Ends Wire Cutting, Twisting and Tinning Machine |
| Display Language | English |
| Max. Capacity | Around 9000～12000 pieces/h |
| Wire Range | AWG#32～AWG#16 |
| Insulated wire Length | 6～680mm(May be customized) |
| Cutting Precision | ﹤± (0.1+0.005*L), L= Cutting Length |
| Stripping Length | 0.1～10mm(longer striping length may be customized) |
| Twisting Mode | Computerized operation(motor driven) |
| Wire Twisting Length | 2～10mm |
| Wire Tining Length | 1～10mm |
| Power & Air Supply | AC 220V, 50/60Hz, Single phase, 0.5Mpa |
| Dimension | 1200mm*120mm*720mm |
| Weight | About 300Kg |
| Functions | Wire cutting & stripping, tining, and the testing of wire lacking, wire knotting, and low air pressure, etc. |
