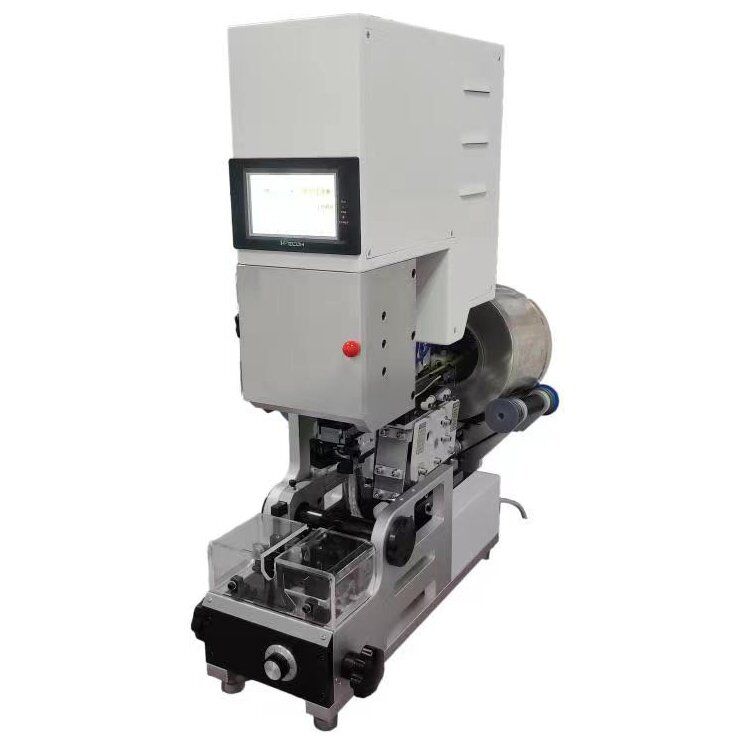

HH-68 Semi-automatic Waterproof Seal Inserting Machine
Product Features
※ This machine is a semi-automatic waterproof seal inserting machine, which is used to automatically insert the waterproof seal onto the stripped wire. HH-68 has a good consistency of penetration depth and high inserting speed of the waterproof seal ;
※ The waterproof seal is automatically fed through the drum, and the action of inserting the waterproof seal can be completed automatically by manually putting the wire in the working position and stepping on the pedal switch;
※ When there are many different sizes of waterproof plugs, you only need to replace the corresponding tracks.
Operating Video
Details About HH-68 Semi-automatic Waterproof Seal Inserting Machine
Technical Parameters
| Model | HH-68 Semi-automatic Waterproof Seal Inserting Machine |
| Display Language | English |
| Seal Size | MAX13mm*14mm（OD*Length） |
| Air Supply | 0.5-0.6MPa |
| Adjust Unit | 10mm |
| Power | AC220 50HZ |
| Capacity | 60pcs/m |
| Motor | 24VDC-50w |
| Weight | About 36kg |
| Dimension | 200mm*600mm*630mm |
