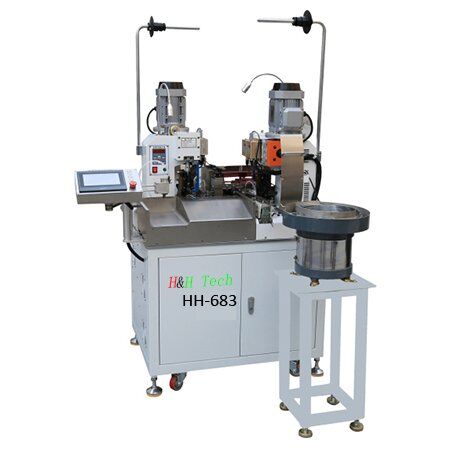

HH-683 Fully-automatic Dual Ends Terminal Crimp & Sheath Insert Machine
Product Description
HH-683 adopts double ends terminal crimping mode to realize the functions of double ends terminal crimping and sheath inserting. The transmission part of the machine adopts Mitsubishi servo and Taiwan guide rail and screw rod, etc., to make the machine durable, accurate, and efficient. The touch screen setting is adopted to realize the easy function conversion, which is simple and convenient.
Operating Video:
HH-683 https://youtu.be/f_ChdblfEKU
HH-683 https://youtu.be/CTMLWiJT3wU high temperature braided wire
HH-683 https://youtu.be/LBIGVRVKWak with wire tinning
HH-683 https://youtu.be/5AaKf0pVOXA dual ends crimping and single end sleeves insertion
HH-683 https://youtu.be/z0qV7443Kk4 High-end Mitsubishi Motor
HH-683 https://youtube.com/shorts/dZnSVFpr-AE Mitsubishi Motor,wire soldering with conveyor
Details About HH-683 Fully-automatic Dual Ends Terminal Crimp & Sheath Insert Machine
Product Features
※ Achieve the terminal crimping of super-thin-wire and super-short wire；

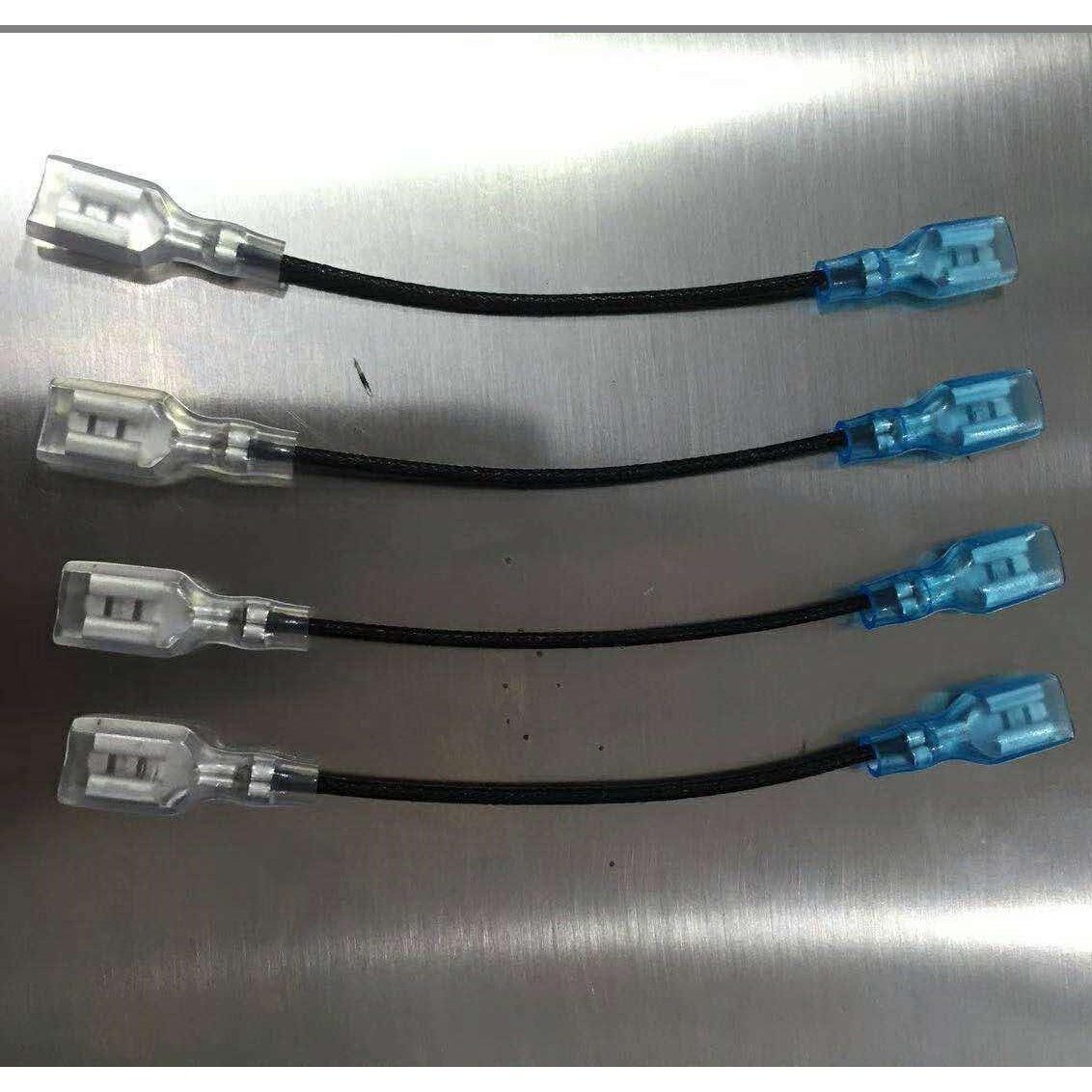

※ The crimping of 187/250 straight terminal and sheath inserting into place can save a lot of labor;
※ The same type of sheathes share the vibrating disc, which greatly improves the versatility;
※ The machine adopts Mitsubishi servo，that is 6 sets of servo;
※ The end without sheath inserting, you can crimp the flag-shaped terminals; you can also choose the wire-twisting station, and crimp pre-insulated terminals, and other processes.
Technical Parameters
| Machine Model | HH-683 Fully-automatic Double Ends Terminal Crimping & Sheath Inserting Machine |
| Display Language | English |
| Max. Capacity | 2500～3500 pieces/h/150mm-length |
| Wire Range | AWG#24～AWG#14 / OD=1.6～3.6mm |
| Insulated wire Length | 80～3000mm(conveyor is necessary if more than 800mm) |
| Cutting Precision | ﹤± (0.1+0.005*L), L= Cutting Length |
| Stripping Length | 0.1～10mm(longer striping length may be customized) |
| Crimping Capability | 2.0T |
| Rated power | 2.0KW/h |
| Power & Air Supply | AC 220V, 50Hz, Single phase, 0.5Mpa |
| Dimension | 960mm*1820mm*1860mm |
| Weight | About 350Kg |
| Wire Types | AV, AVS, AVSS, UL |
| Functions | Wire cutting & stripping, terminal crimping, and sheath inserting |
