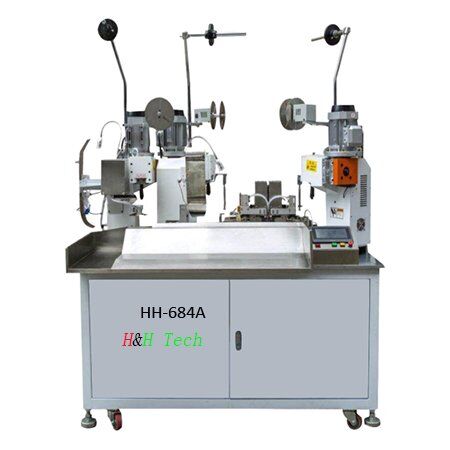

HH-684A Fully-automatic Wire-joint Terminal Crimp and Sheath Insert Machine
Product Description
HH-684A adopts two-wire feeding, three-end crimping, and sheath inserting mode to realize the functions of double-end single crimping, sheath inserting, and single-end combined terminal crimping. The transmission part of the machine adopts servo and stepping motors and Taiwan guide rail and screw rod, etc., to make the machine durable, accurate, and efficient. The touch screen setting is adopted to realize the easy function conversion, which is simple and convenient.
Operating Video:
HH-684A https://youtu.be/KlRyV-CfBBA
HH-684A https://youtu.be/fepIkBA2edU Standard
HH-684A https://youtu.be/myhuW7gP8wA Sheath/sleeves inserting
HH-684A https://youtu.be/7nN53OjX_4g Soltec CFM
HH-684A https://youtu.be/9dOoDg7vqKk Flag terminal
HH-684A https://youtu.be/7LfYU6syi0M Loose terminal
HH-684A https://youtu.be/unAxX9R2Gx0 dual-belt terminal
HH-684A https://youtu.be/Q8VWxzNK1IA CFMs installed
HH-684A https://youtu.be/tbT3KCDTNRo Flag terminal
HH-684A https://youtube.com/shorts/yF7jELfbXcg 3 flag terminals
HH-684A https://youtube.com/shorts/cTwwuWEvIlw 4 wires 5 terminals crimping
Details About HH-684A Fully-automatic Wire-joint Terminal Crimp and Sheath Insert Machine

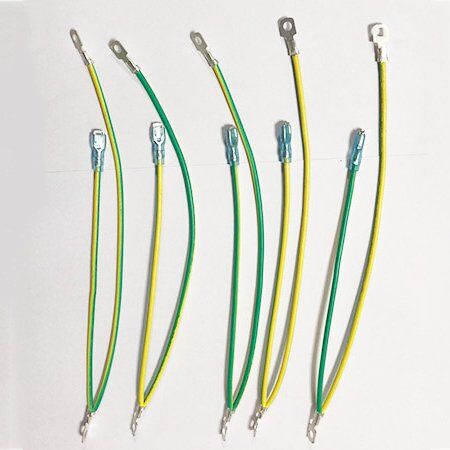

Product Features

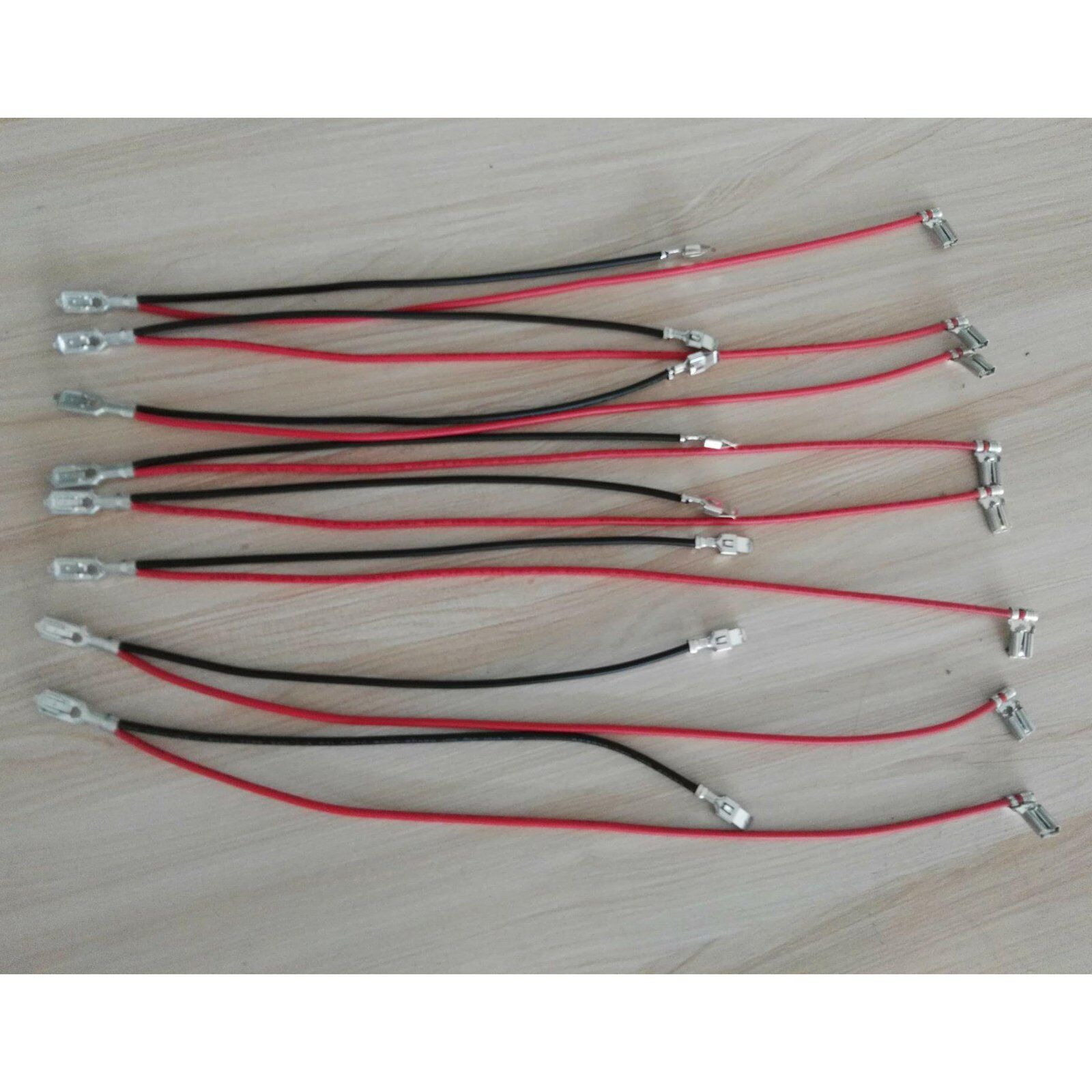

※ You can combinedly crimp one end of two wires on one terminal and crimp the other ends of every single wire separately；
※ Two wires are crimping one on another on one terminal, or side by side on the terminal;
※ CNC debugging: cutting depth & length, stripping length, crimping height, fallback after crimping can all be adjusted by the digital operation of the touch screen, and you can be proficient in operation by simple learning;
※ Equipped with the combination of servo and stepping motors, it is accurate, efficient, and stable;
※ This machine may stop immediately, when abnormal situations are digitally detected, like low air supply, abnormal motor, terminal absence, And the cause of failure shall be displayed for convenient and quick troubleshooting.
Technical Parameters
| Machine Model | HH-684A Fully-automatic 2-wire & 3-end Joint Terminal Crimping and Sheath Inserting Machine |
| Display Language | English |
| Max. Capacity | 2500/h/100mm length |
| Wire Range | AWG#24～AWG#12 |
| Insulated wire Length | 45～9999mm |
| Cutting Precision | ﹤± (0.1+0.005*L), L=Cutting Length |
| Stripping Length | 0.1～15mm |
| Crimping Capability | 2.0T～4.0T |
| Rated power | 3KW/h |
| Power & Air Supply | AC 220V, 50/60Hz, 0.5Mpa |
| Dimension | 1600mm*820mm*1500mm |
| Weight | About 600Kg |
| Wire Types | AV, AVS, AVSS, UL |
| Functions | Wire cutting & stripping, terminal crimping and sheath inserting |
