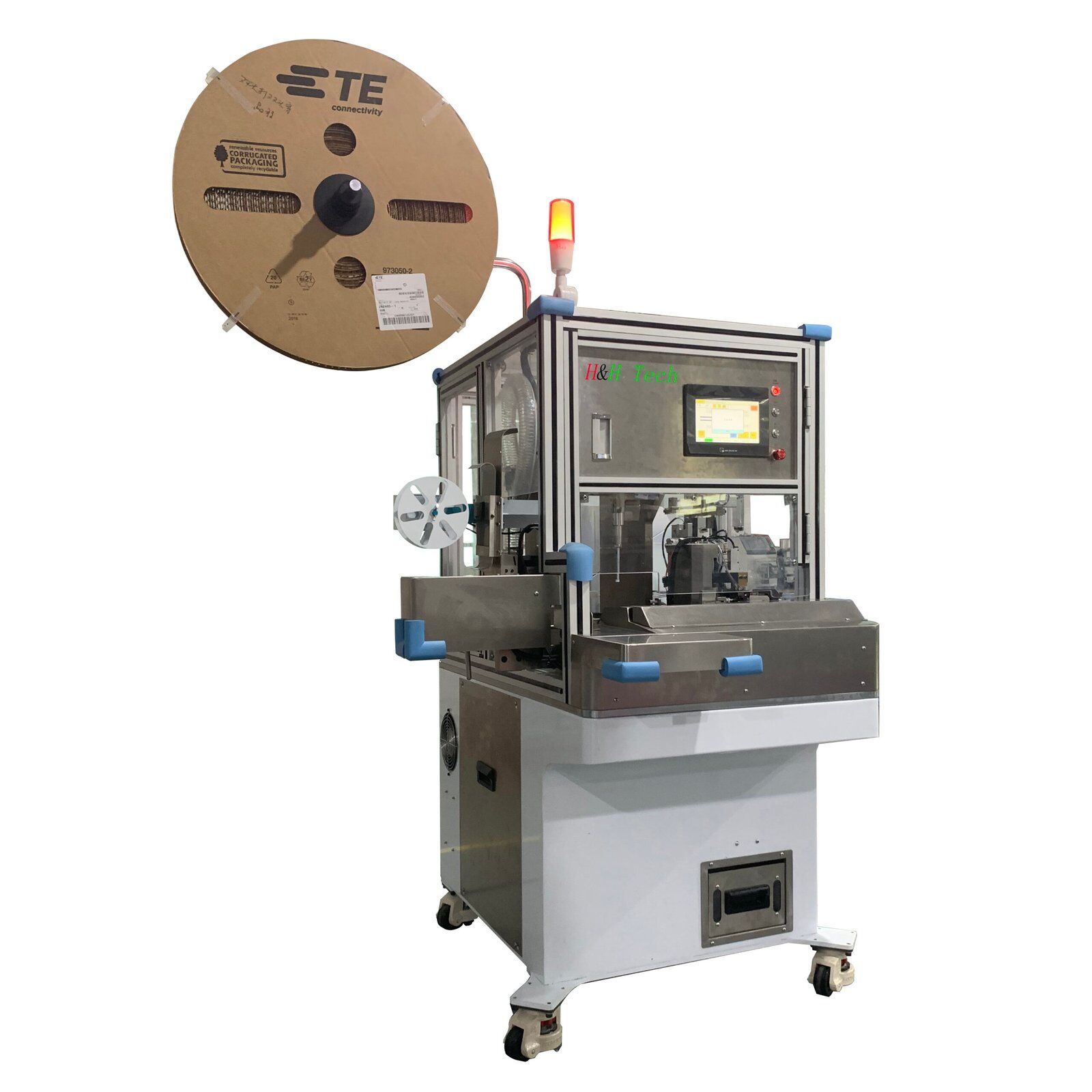

HH-686 Semi-automatic Terminal Crimping and Seal Inserting Machine
Product Description
HH-686 adopts servo drive, guide rail, and screw rod positioning, and realizes three processes of seal inserting, stripping, and terminal crimping in sequence. Effectively improve productivity, and data can be edited and saved, while various functions can be run independently, which is making debugging more convenient.
Operating Video:
HH-686 https://youtu.be/8ZVM6oqKxDg safety acrylic shield

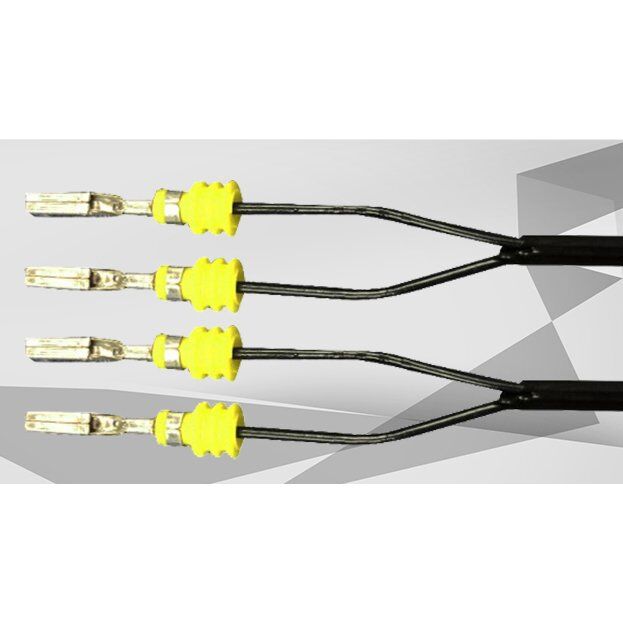

HH-686 https://youtu.be/9-kIcnux6n4 2 Wires processed in sequence

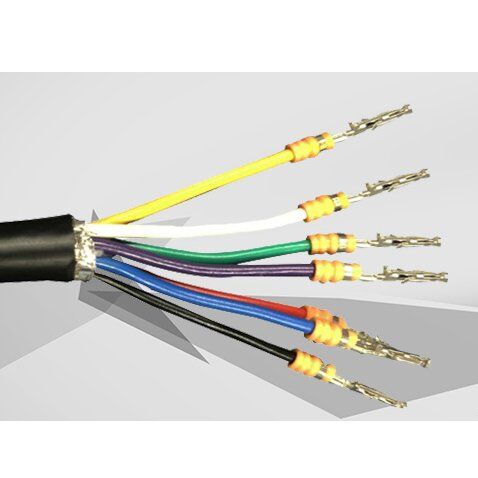

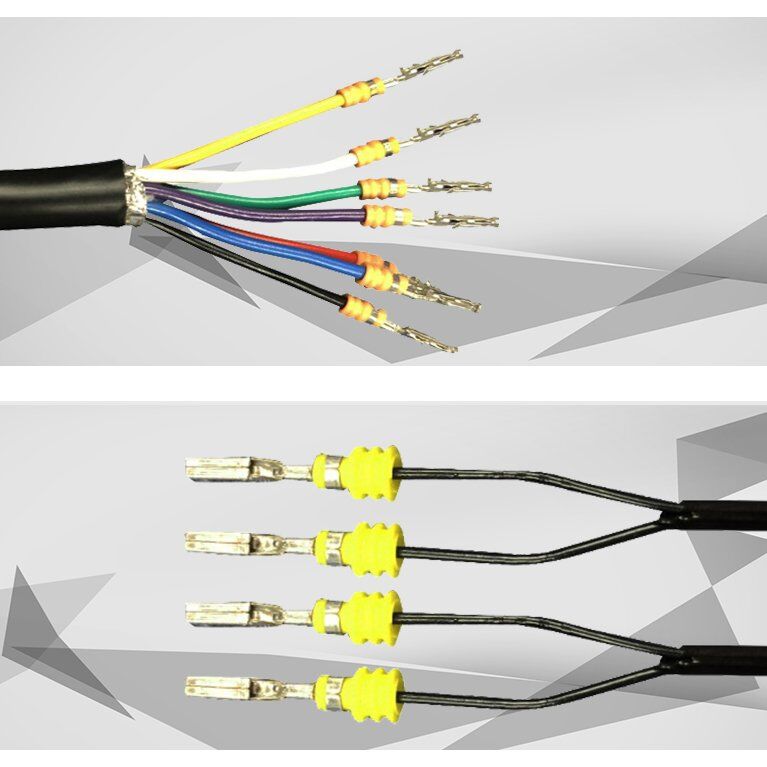

HH-686 https://youtu.be/TRVCv6KxC_Q mini waterproof seal on the inner wires
HH-686 https://youtube.com/shorts/7m7ZCg4kHwU 2 wires of sheath cable
HH-686 https://youtube.com/shorts/0n04lwl0Vik
HH-686 https://youtu.be/GBS8iRLVrfE 2 Wires processed Simultaneously
Details About HH-686 Semi-automatic Terminal Crimping and Seal Inserting Machine
Product Features
※ The terminal crimping machine is driven by a high-efficiency servo motor, high speed, and stable crimping；
※ The stripping slide table adopts screw rod to drive to ensure accurate stripping length;
※ The cutting structure is driven by motor and screw-rod, and the cutting depth can be digitally adjusted.
※ The feeding structure of waterproof seal is simple and easy to replace, which can meet the requirements of customers with a wide variety of products;
※ The machine has the advantages of simple operation, stable quality, and centralized working stations.
Technical Parameters
| Machine Model | HH-686 Semi-automatic Terminal Crimping and Seal Inserting Machine |
| Display Language | English |
| Wire Range | 0.2～2.5mm² |
| Cutting Precision | ﹤± 0.02mm |
| Stripping Length | 0～10mm |
| Crimping Capability | 3T |
| Crimping Drive Mode | Servo Crimping |
| Stroke | 40mm |
| Single Circle | 2.5s |
| Power & Air Supply | AC 220V, 50Hz, 0.5Mpa |
| Dimension | 850mm*880mm*1300mm |
| Weight | About 300Kg |
| Functions | Wire cutting & stripping, terminal crimping, and Seal inserting |
