HH-75 Nut Tightening Machine
Product Features

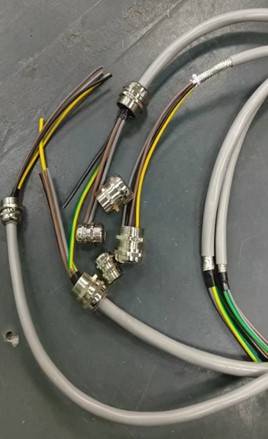

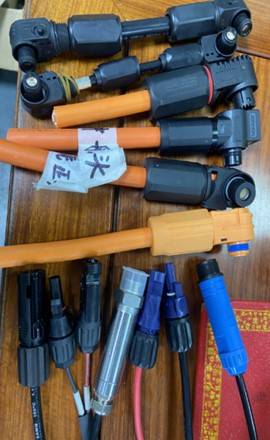

- Scope of application: new energy charging guns, photovoltaic power generation connection wires, energy storage wires, servo wiring harnesses, aviation plugs, and so on. The movement is precise and fast, and the operation is simple.
- The equipment mainly uses imported components, with stable performance and a high degree of automation.
- Using imported servo motor system, it has a fast running speed and stable performance.
- Adopting a touch screen operation interface, parameters such as torque, torque frequency, and nut rotation can be set.
- A torque sensor can be added.
Operating videos
HH-75A https://youtu.be/telZTBePp_o
HH-75B https://youtube.com/shorts/xetw2BSqdTI
HH-75B https://youtube.com/shorts/efvzM-M9NR0
HH-75C https://youtu.be/6tkjUeux8JA
Details About HH-75 Nut Tightening Machine
Technical Parameters

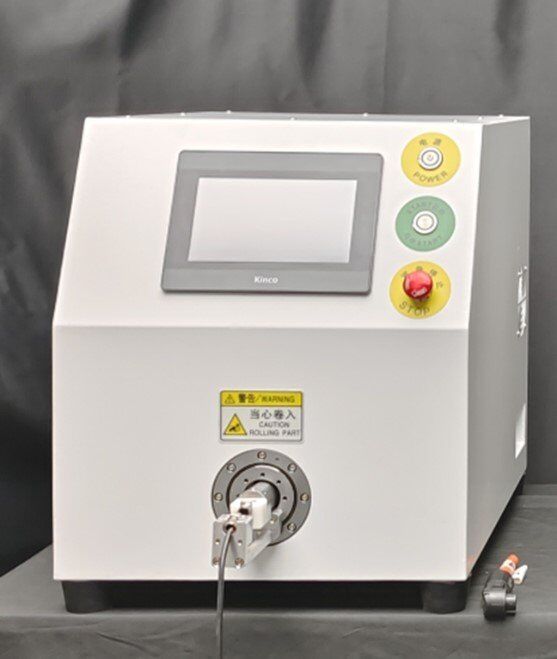

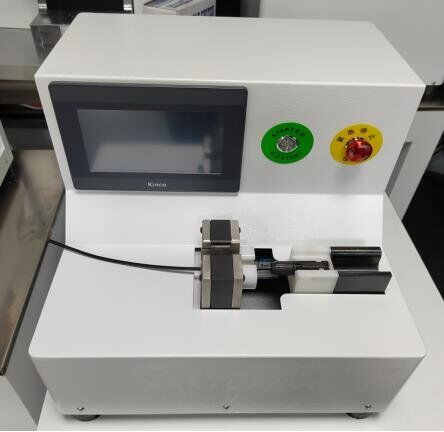

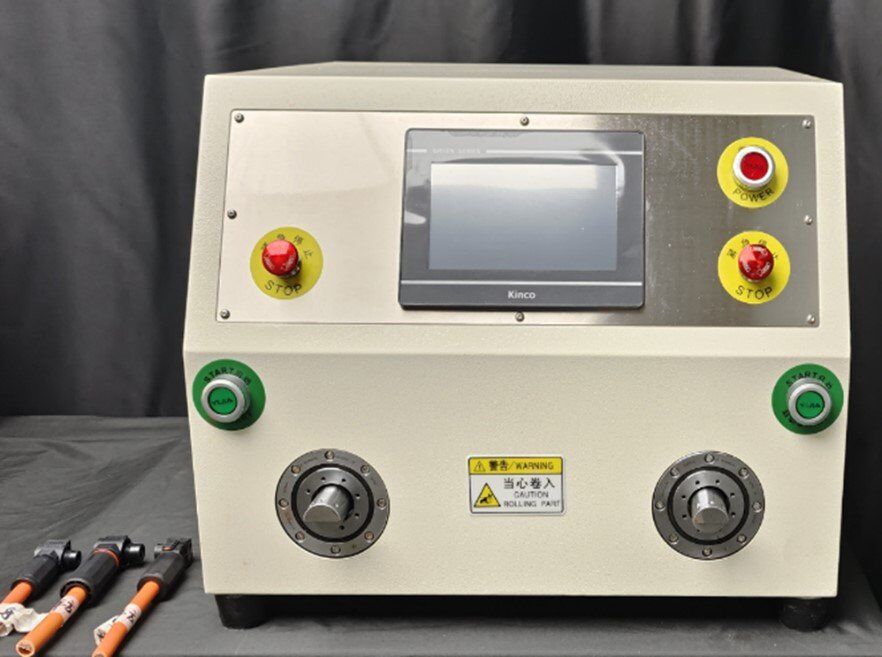

Model | HH-75A Nut Tightening Machine (Single Station) | HH-75B Nut Tightening Machine (Dual Station) | HH-75C Nut Tightening Machine |
Power | 220V-AC,50/60HZ | 220V-AC,50/60HZ | 220V-AC,50/60HZ |
Rated Power | 1000W | 1800W | 1000W |
Display | Touch Screen | Touch Screen | Touch Screen |
Capacity | 600~1000pcs/h, based on manual speed | 600~1000pcs/h, based on manual speed | 600~1000pcs/h, based on manual speed |
Tightening Mode | Torque: 0.5 – 6.4 N. Tightening mode / Loosening mode. | Torque: 0.5 – 6.4 N. Tightening mode / Loosening mode. | Torque: 0.5 – 6.4 N. Tightening mode / Loosening mode. |
Fixture | To be customized based on samples | To be customized based on samples | To be customized based on samples |
Air Supply | 0.2~0.4Mpa, clean and dry air | 0.2~0.4Mpa, clean and dry air | 0.2~0.4Mpa, clean and dry air |
Dimension | L 600mm*W 410mm*H 500mm | L 600mm*W 580mm*H 480mm | L 460mm*W 410mm*H 400mm |
Weight | 27KG | 40KG | 31KG |
