HH-M Applicators（Not All）
HH-MH Pneumatic Side-feed Applicator
| Model | HH-MH Pneumatic Side-feed Applicator |
| Terminal Type | Horizontal/Side-feed |
| Feeding Method | Pneumatic Feeding |
| Stroke | 30/40mm |
| Terminal distance | ≤40mm |
| Blade Material | Imported Die Steel |
| Adjustment Accuracy | 0.02mm |
| Terminal Thickness | ≤1.2mm |
| Wire Range | 0.08～6mm²(AWG30～9) |
| Weight | 6kg |
| Applied Machine | Semi-auto/Auto Crimping Machine |
HH-ME European Applicator
| Model | HH-ME European Applicator |
| Terminal Type | Vertical/End-feed |
| Feeding Method | Mechanical Feeding |
| Stroke | 30/40mm |
| Terminal distance | ≤40mm |
| Blade Material | Imported Die Steel |
| Adjustment Accuracy | 0.02mm |
| Terminal Thickness | ≤1.2mm |
| Wire Range | 0.08～6mm²(AWG30～9) |
| Weight | 6kg |
| Applied Machine | Semi-auto/Auto Crimping Machine |
Operating Videos:
HH-MH https://youtube.com/shorts/1BCP2ftMJ-Q FDFN2 250 linked insulation terminals
HH-ME https://youtube.com/shorts/5KHGspOXiOA FDFN2 250 linked insulation terminals
HH-MJ https://youtube.com/shorts/Mhx196uCbjo linked insulation terminals
HH-MO https://youtube.com/shorts/CPSz4PiJXaI linked end-feed flag terminals
Details About HH-M Applicators（Not All）

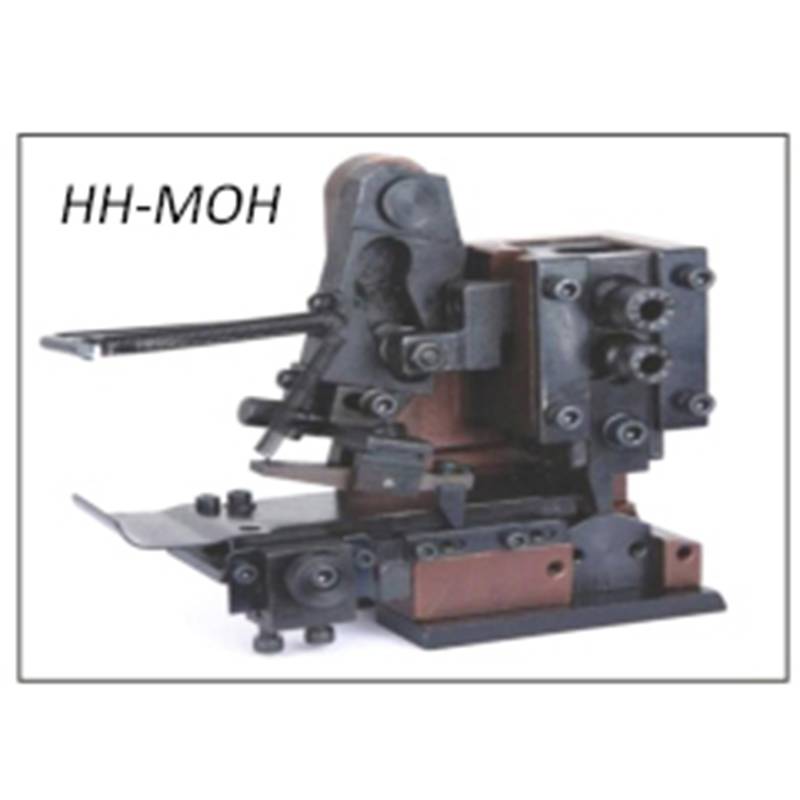

HH-MO OTP Side-feed Applicator
| Model | HH-MO OTP Side-feed Applicator |
| Terminal Type | Horizontal/Side-feed |
| Feeding Method | Mechanical Feeding |
| Stroke | 30mm |
| Terminal distance | ≤32mm |
| Blade Material | Imported Die Steel |
| Adjustment Accuracy | 0.05mm |
| Weight | 4.4kg |
| Applied Machine | Semi-auto/Auto Crimping Machine |
HH-MZ OTP End-feed Applicator
| Model | HH-MZ OTP End-feed Applicator |
| Terminal Type | Vertical/End-feed |
| Feeding Method | Mechanical Feeding |
| Stroke | 30mm |
| Terminal distance | ≤32mm |
| Blade Material | Imported Die Steel |
| Adjustment Accuracy | 0.05mm |
| Weight | 4.4kg |
| Applied Machine | Semi-auto/Auto Crimping Machine |
