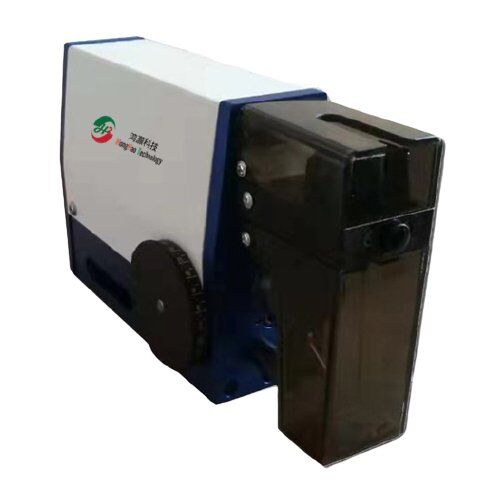

HH-P2.0 Portable Pneumatic Wire Stripping Machine
Technical parameters
| Applied wire diameter | AWG14-32#（0.03-2.08mm²） |

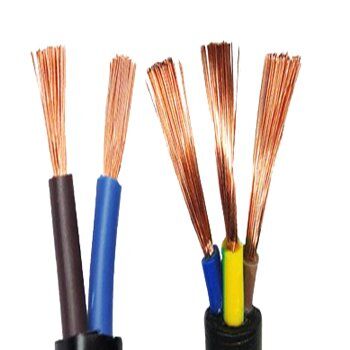

| Wire type | thin wires such as PVC, solid core wire, single-stranded wire, rubber wire, computer core wire, and telephone wire, etc. |
| Stripping length | 1-20mm |
| Diameter precision | 0.01mm |
| Processing time about | 0.3pcs/s |
| Stroke | 20mm |
| Air supply | 0.5MPa-0.8Mpa |
| Weight | 3.5kg |
| Dimension | 260 x 150 x 270mm |
Details About HH-P2.0 Portable Pneumatic Wire Stripping Machine
Product features
1. Special pneumatic sensor switch control, accurate stripping, quick response, and high efficiency.
2. The whole machine is controlled by a pneumatic drive which doesn’t need electricity.
3. Imported pneumatic components, with high precision stripping and long durability.
4.90°， V-shaped design of the blade is universal, no need to change the cutter, and the cross-section of the processed wire is neat and flat.
5. The stripping length, half stripping length, cutting depth can be adjusted by a rotary button.
6. The whole structure is exquisite in design, and it is easy to move.
