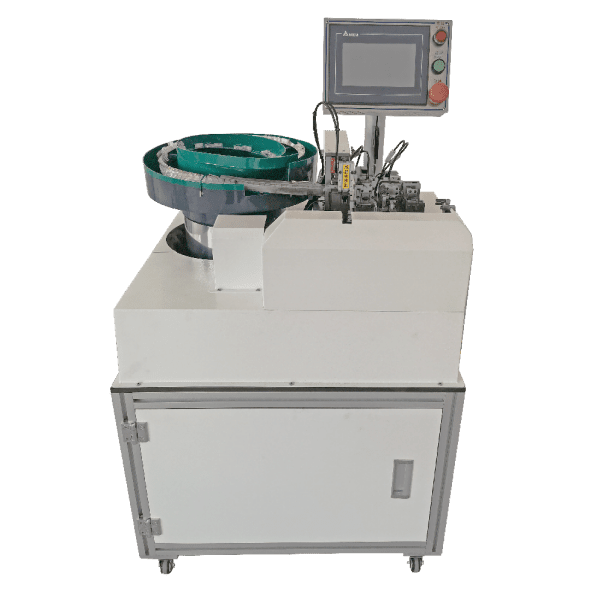

HH-RJ01 Semi-automatic Crystal Head Crimping Machine
Product Features
※ Japanese Mitsubishi servo motor controls accurately the shrapnel depth of crimping crystal head;
※ Germany Festo and other pneumatic components can ensure fast response;
※ Taiwan Delta large size touch screen, easy to operate;
※ The combination of precision screw-rod movement control and fine grinding parts, to ensure accurate positioning, stability and high speed.
Operating Video
HH-RJ01 https://youtu.be/ndzjk5u7gww crystal head crimper
Details About HH-RJ01 Semi-automatic Crystal Head Crimping Machine
Technical Parameters
| Model | HH-RJ01 Semi-automatic Crystal Head Crimping Machine |
| Display Language | English |
| Functions | Wire cores even- shearing, crystal head penetrating, crystal head crimping |
| Cable Range | CAT-5, CAT-5e, CAT-6, CAT-6e |

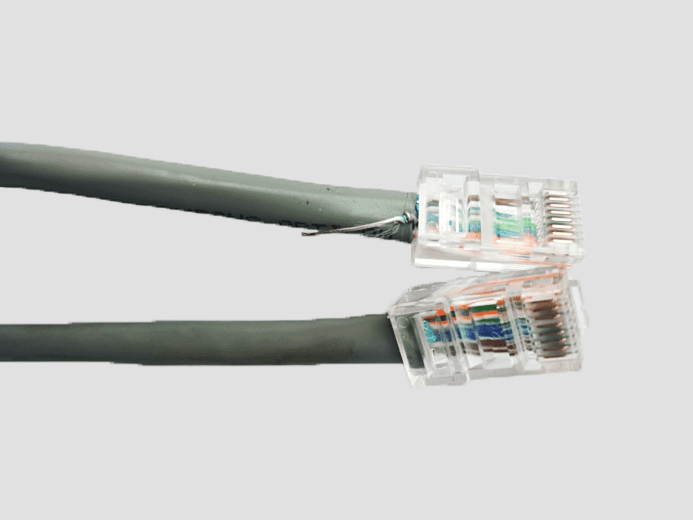

| Processing Range | Crystal head 8P8C |
| Capacity | 500PCS/h |
| Power | AC220V/50/60HZ single phase |
| Air supply | 5～7Mpa(clean, dry air) |
| Warning Functions | Low air pressure, return of finished product clip, overload of motor, lack of crystal head |
| Weight | About 100KG |
| Dimension | 600mm*700mm*1200mm |
