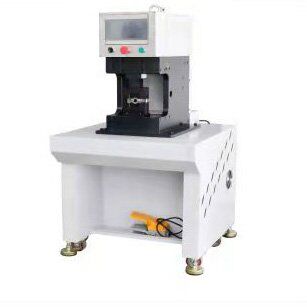

HH-350S 30T Servo Terminal Crimping Machine
Product Features

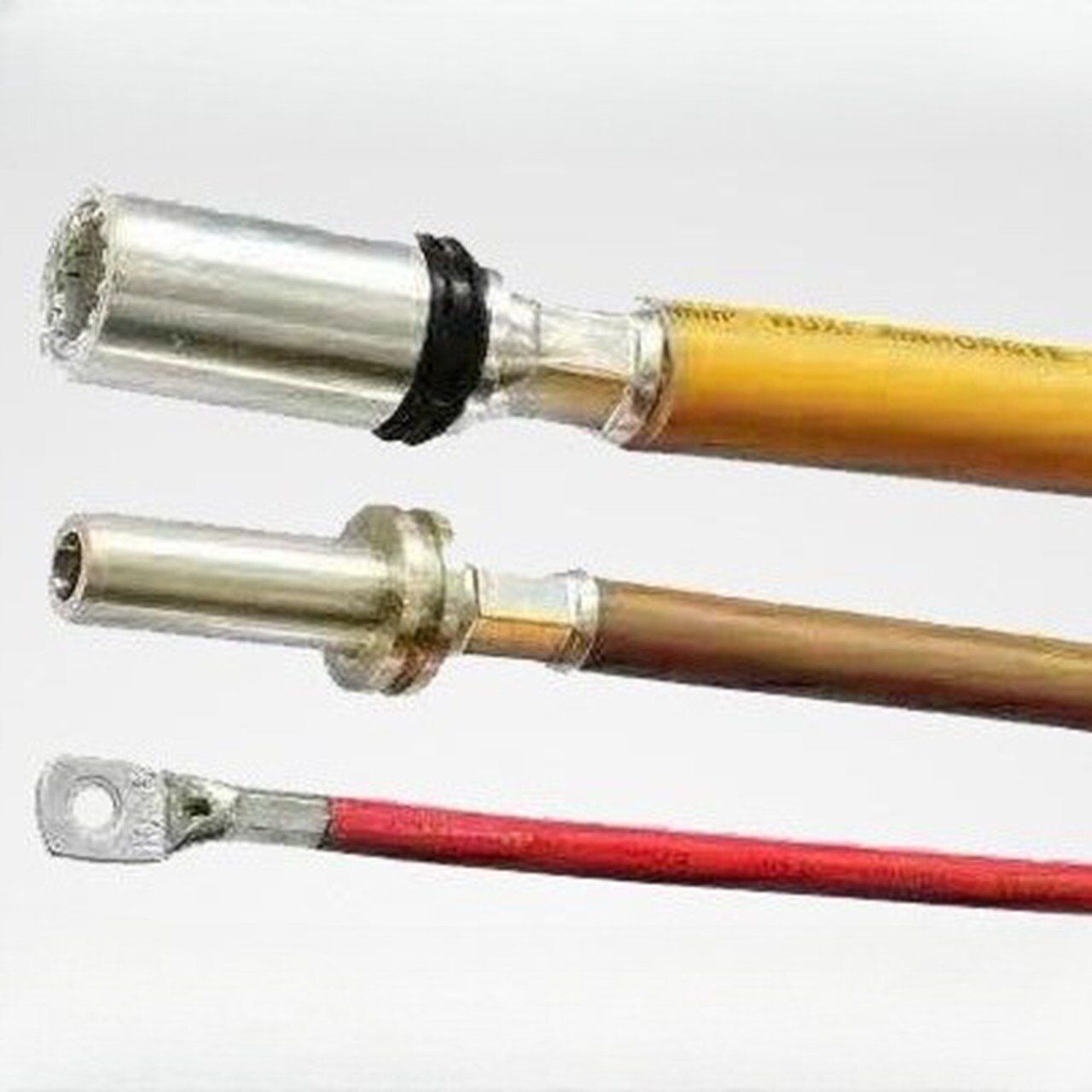

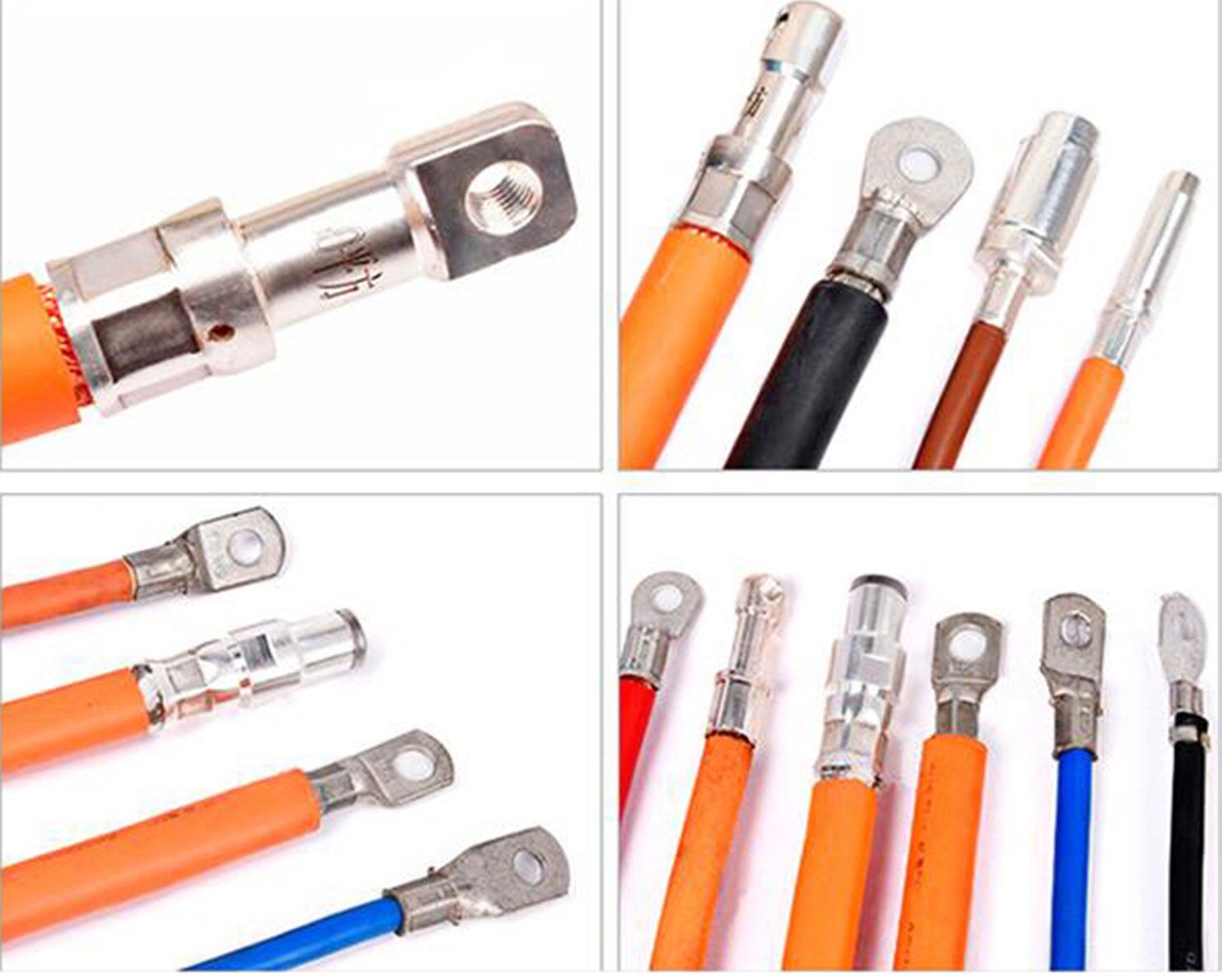

※ It is suitable for crimping operation of non-standardized terminals and lug terminals;
※ Its servo control system boasts high accuracy;

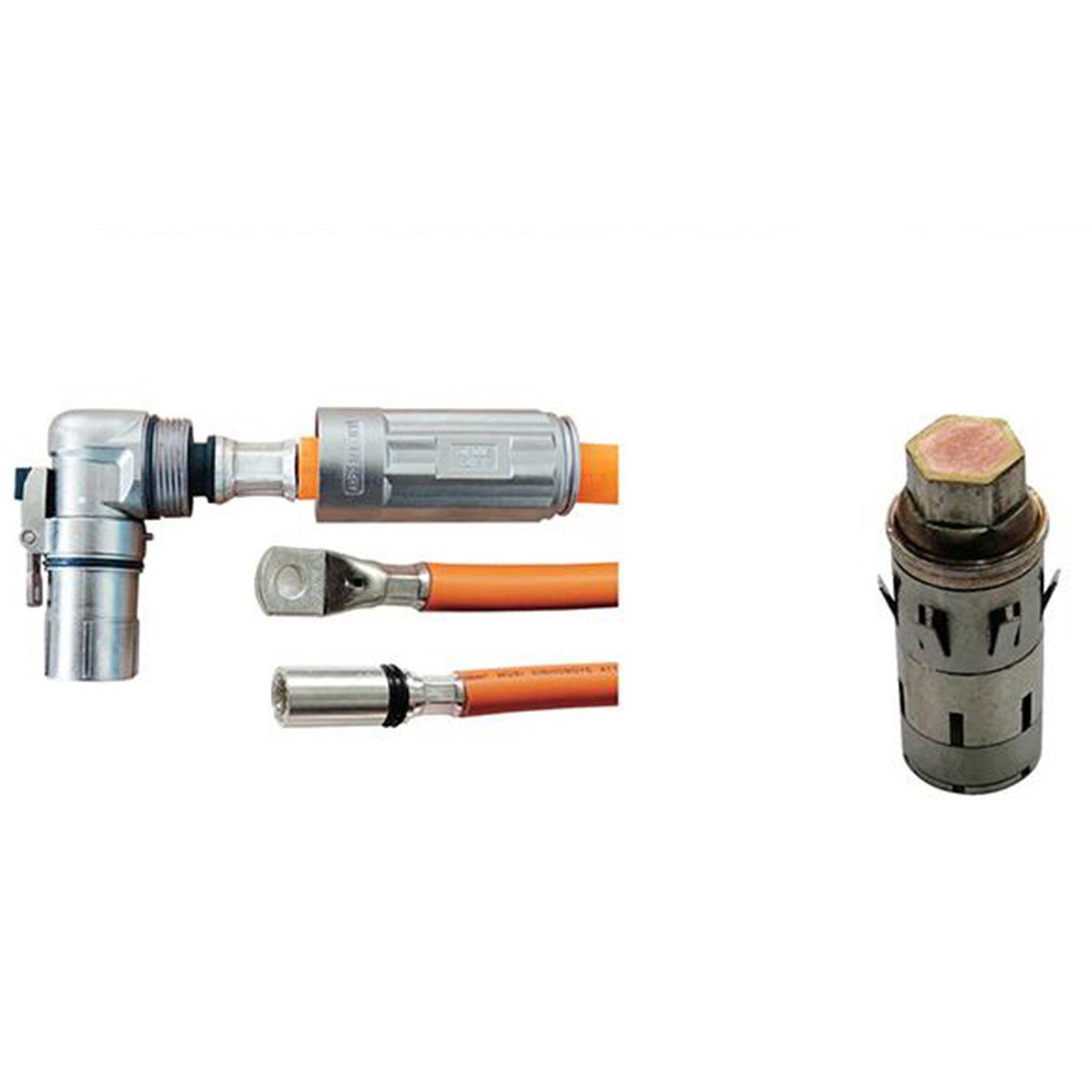

※ It is suitable for intermediate junction and new energy right-angle terminals；
※ Mode of operation: The touch screen selects the set program and automatically adjusts the loosening and tightness of the applicator；
※ It features compact structure, space saving and low working noise.
Operating Video:
HH-350S https://youtu.be/nA7mFutB_Jo
HH-350S https://youtube.com/shorts/qMEKqHWaSRA pin
HH-350S https://youtube.com/shorts/XIjfp2u3KtU hexagon crimp
HH-350S https://youtu.be/HOlDqp62a3k Hexagon crimp
HH-350S https://youtube.com/shorts/6XxeQnyRbis Hexagon crimp
Details About HH-350S 30T Servo Terminal Crimping Machine
Technical Parameters
| Model | HH-350S 30T Servo Terminal Crimping Machine |
| Display Language | English |
| Wire Size | 2.5-95mm ² |
| Stroke | 30mm |
| Applicators | hexagonal applicator, quadrilateral applicator, etc. |
| Crimping Force | 300KN |
| Rated Power | 2300W |
| Operating Mode | Manual/Foot Pedal |
| Capacity | 600-1200Pcs/h (depending on manual proficiency) |
| Power and Air Supply | 220V, 50HZ |
| Dimension | 750mm*720mm*1400mm |
| Weight | About 340Kg |
