HH-3N19/3N20/3N23 Wire Twisting Machine
Product Description

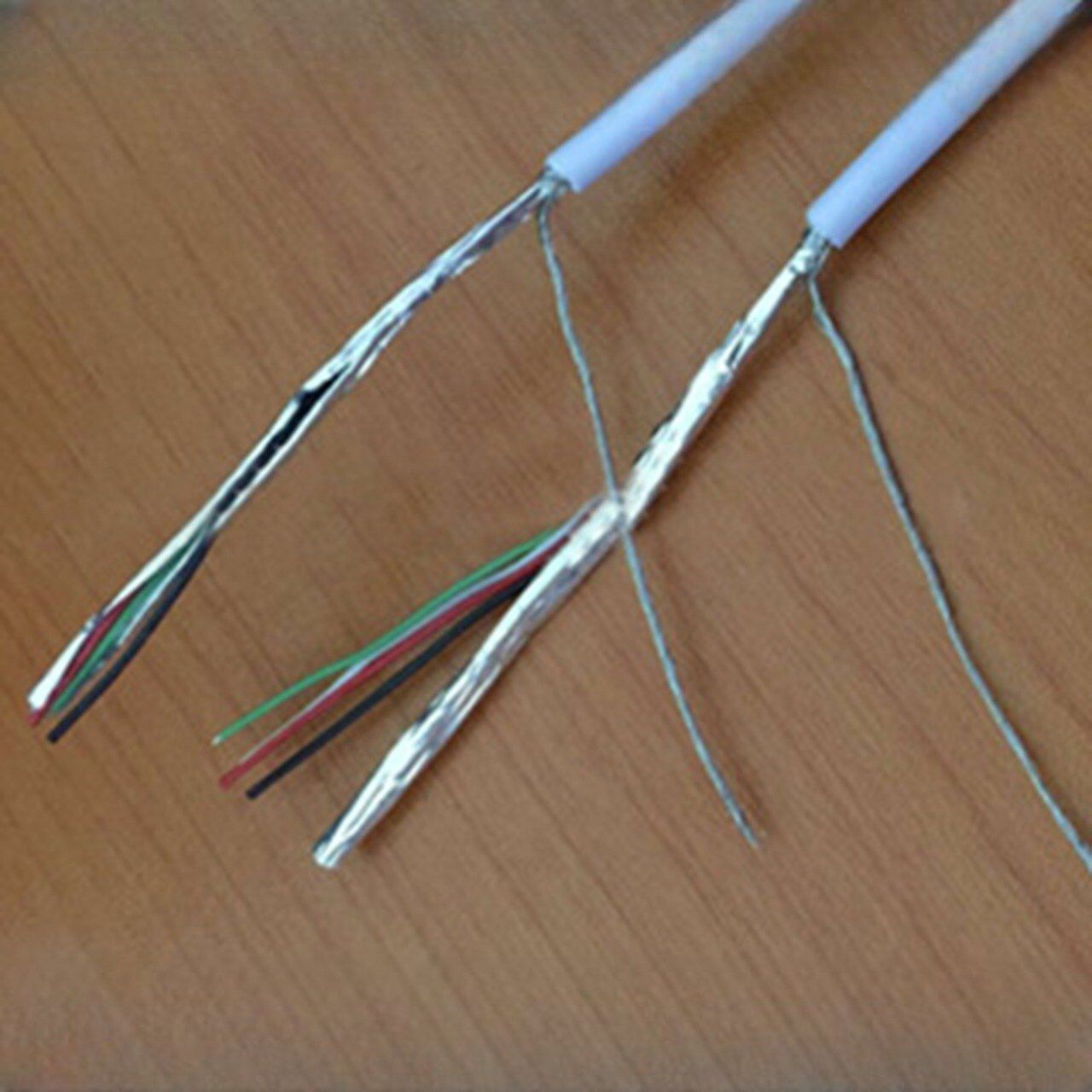

※ All kinds of ground wire, braided wire, and isolation wire can be twisted to replace manual work completely；

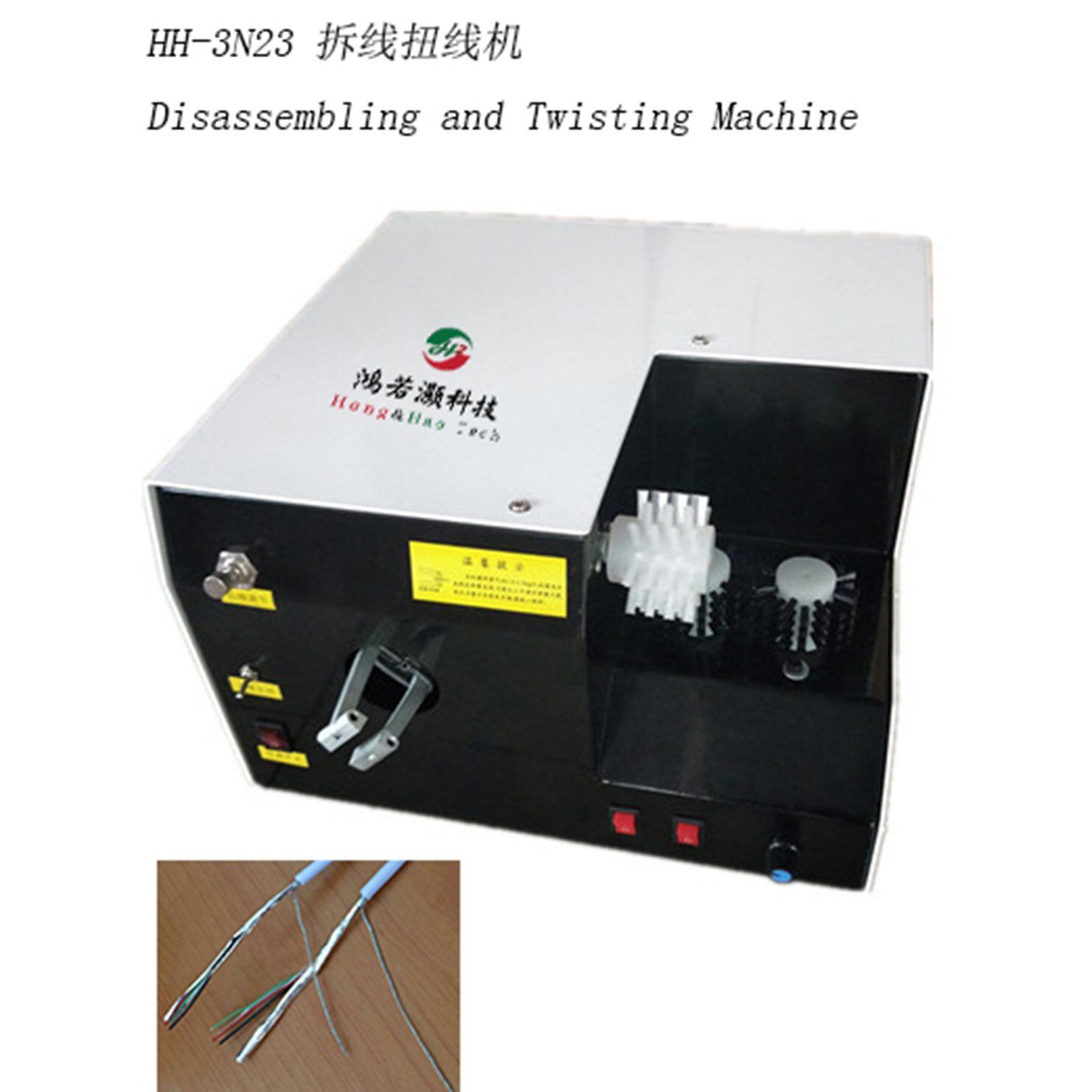

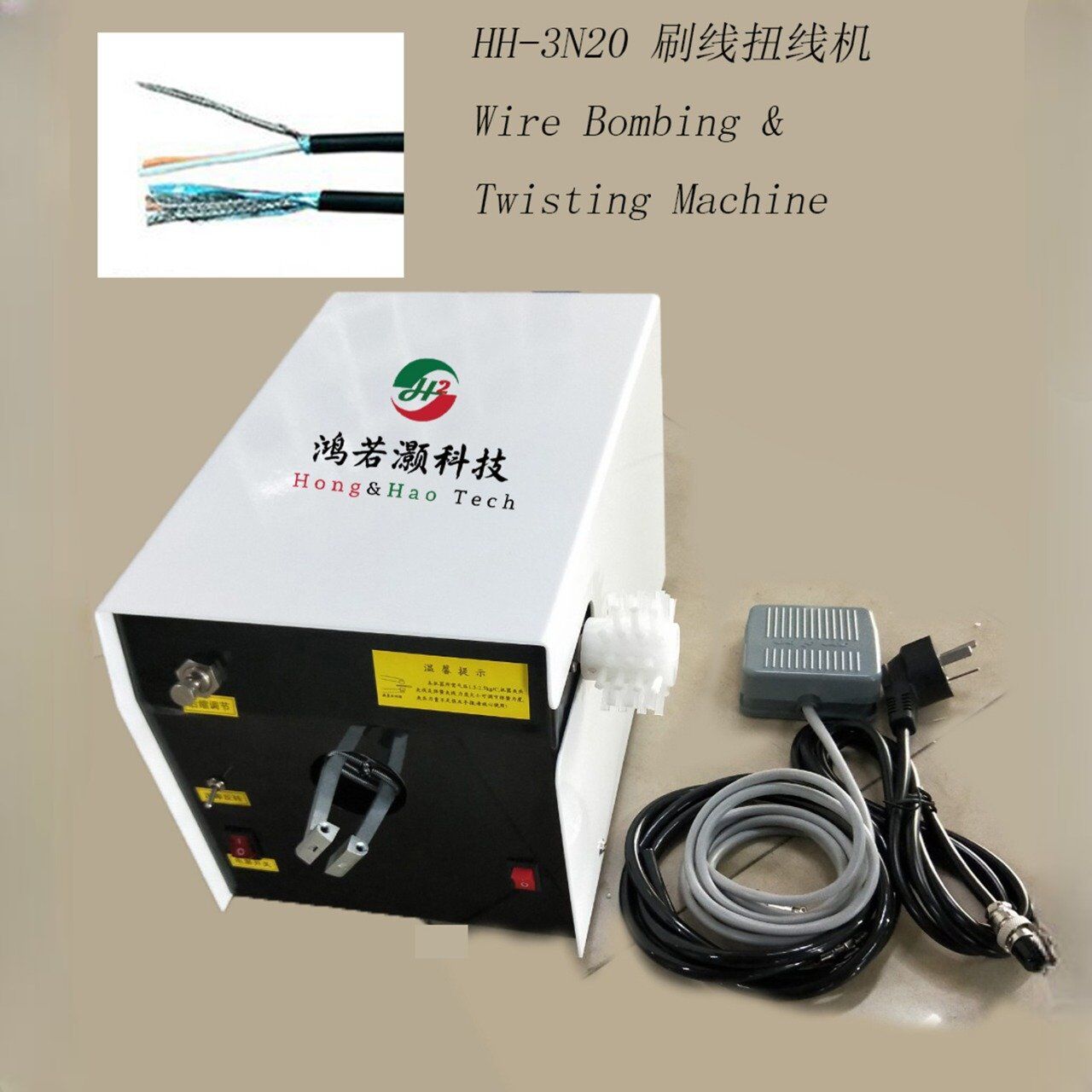

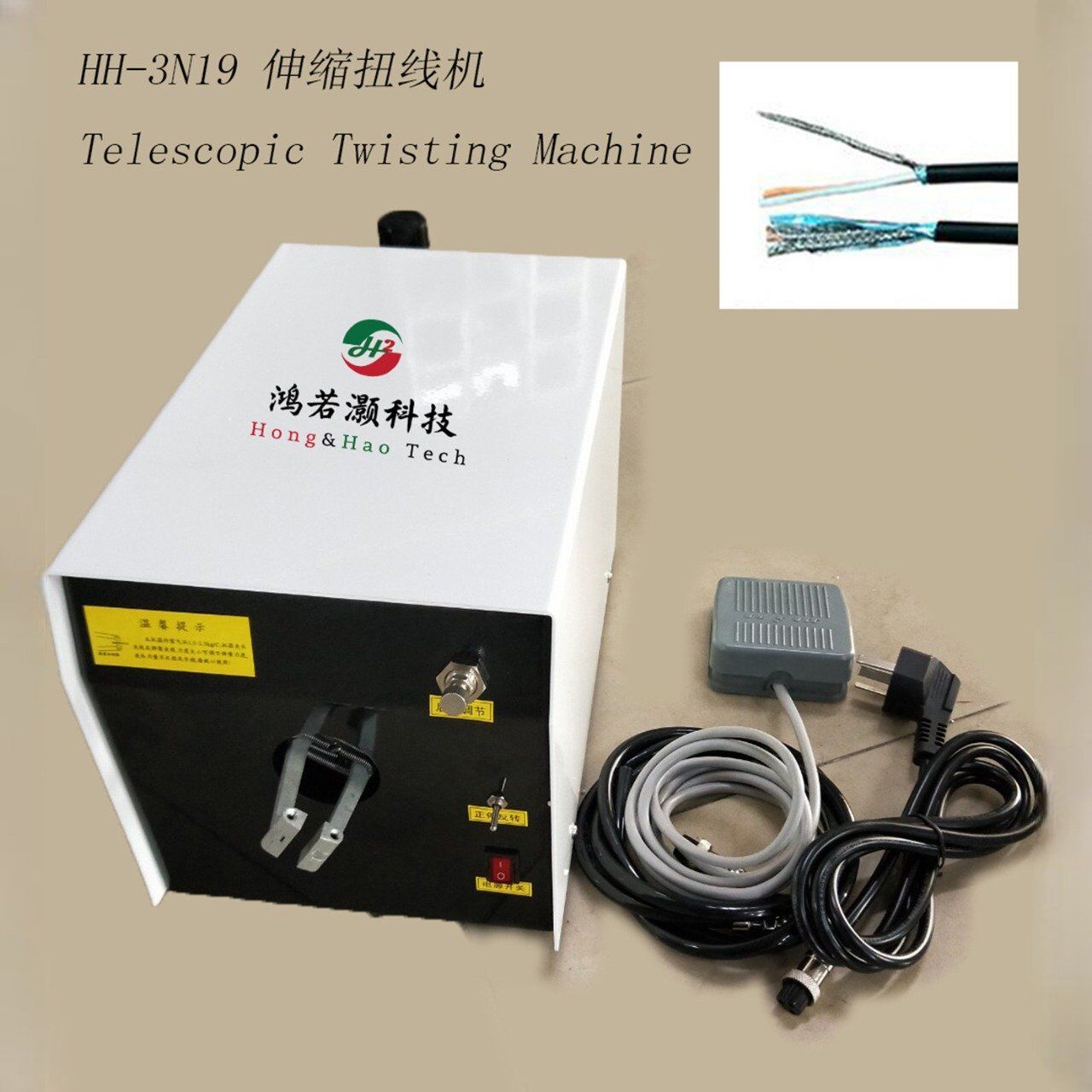

※ HH-3N19 does telescopic twisting; HH-3N20 does bombing + twisting; HH-3N23 does disassemble and twisting.
Operating Video:
HH-3N19 https://youtu.be/NKPIZKQu9LQ
HH-3N20 https://youtu.be/Kq-el8iXiNc
HH-3N23 https://youtu.be/ImY51YLqoKY
Details About HH-3N19/3N20/3N23 Wire Twisting Machine
Product Features
※ All kinds of ground wire, braided wire, and isolation wire can be twisted to replace manual work completely；
※ The clamp is pneumatically controlled, when the air source is turned on, the clamp will open automatically. Only need to put in the cable by hand and gently step on the pedal switch to complete the twisted wire operation;
※ The automatic clamp adopts an exposed design so that the scattered copper wire can be easily placed； If there is a phenomenon of slipping outward when twisting the thick wire, a small groove should be made in the center based on the size of the cable；
※ The opening size of the chuck is adjustable, loosen the chuck spindle screw inside the machine, move the whole chuck to the direction of the motor, and then lock the spindle screw to enlarge, or vice versa；
※ HH-3N19 does telescopic twisting; HH-3N20 does cable combing + twisting; HH-3N23 does cable disassembling and twisting.
Technical Parameters
| Model | HH-3N19 | HH-3N20 | HH-3N23 |
| Twisting Range | 0.1～2.0mm² | 0.1～2.0mm² | 0.1～2.0mm² |
| Twisting Length | 5～80mm | 5～80mm | 5～80mm |
| Air supply | 0.4-0.6 Mpa | 0.4-0.6 Mpa | 0.4-0.6 Mpa |
| Revolution Speed | 1400r/s | 1400r/s | 1400r/s |
| Wire Combing Φ | 0.1～10mm | 0.1～10mm | |
| Wire Combing Length | 1～60mm | 1～60mm | |
| Wire Disassembling Φ | 0.1～6mm | ||
| Wire Disassembling Length | 1～60mm | ||
| Weight | 12 kg | 12 kg | 15 kg |
| Dimension | 340*190*170mm | 340*190*170mm | 320*320*210mm |
| Power | AC 220V, 50HZ, 10W | AC 220V, 50HZ, 10W | AC 220V, 50HZ, 10W |
