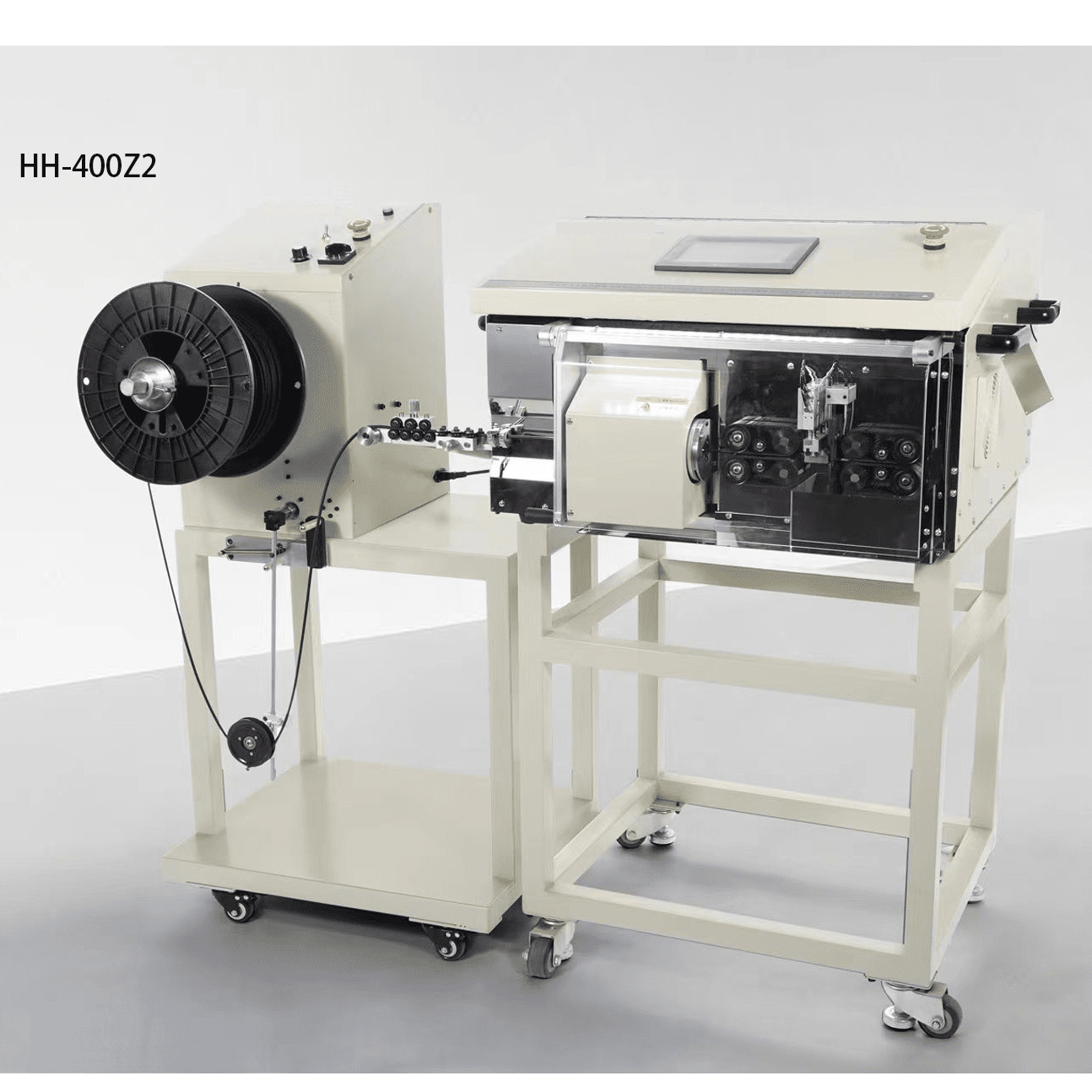

HH-400Z1/Z2 Fully-automatic Cut and Strip Machine for Coaxial Cable
Product Features
※ HH-400Z1/Z2 are mainly aimed at automatic cutting of communication cable (thin/thick cable) and multi-layer stripping at both ends without damaging the conductor;
※ Using touch screen interface to digitally input stripping depth/speed/distance,rotating time, etc., and the cutting and stripping is very neat and clear;
※ HH-400Z series adopt rotary cutter and V-shaped blades to cooperate with each other, which has high precision, high speed and good stability;
※ By using a specific axis positioning device and rotary tool, HH-400 series can strip up to 9 layers coaxial cable and various types of wires without changing the blades;
※ Wire clamping device can do automatic centering, driven by motor, and its clamping strength is controlled by program.
Operating Videos
HH-400Z2 https://youtu.be/jlofMEPWxMs
HH-400Z3 https://youtu.be/eK9wFSCbZhk OD 3~32mm high voltage new energy cable
Details About HH-400Z1/Z2 Fully-automatic Cut and Strip Machine for Coaxial Cable
Technical Parameters
| Model | HH-400Z1 | HH-400Z2 |
| Wire Diameter | Φ0.64～Φ3.5mm | Φ1.37～Φ5.5mm (customized up to 12mm) |
| Cutting Length | 20mm～9999mm | 45mm～9999mm |
| Stripping Length | 0.1mm～40mm | 0.1mm～60mm |
| Motor | 850W | |
| Capacity | 450～600pcs/h | |
| Cutting Precision | 0.01mm | |
| Voltage | AC220 50/60HZ | |
| Stripping method | Rotary Cutter+V Blades | |
| Stripping Layers | Max. 9 layers | |
| Cutter Material | Import Tungsten Steel+ Import High Speed Steel | |
| Display Language | English | |
| Working Environment | -5℃～45℃, dry and stable working table | |
| Dimension | 970mm*770mm*560mm | |
| Weight | About 102Kg | |
