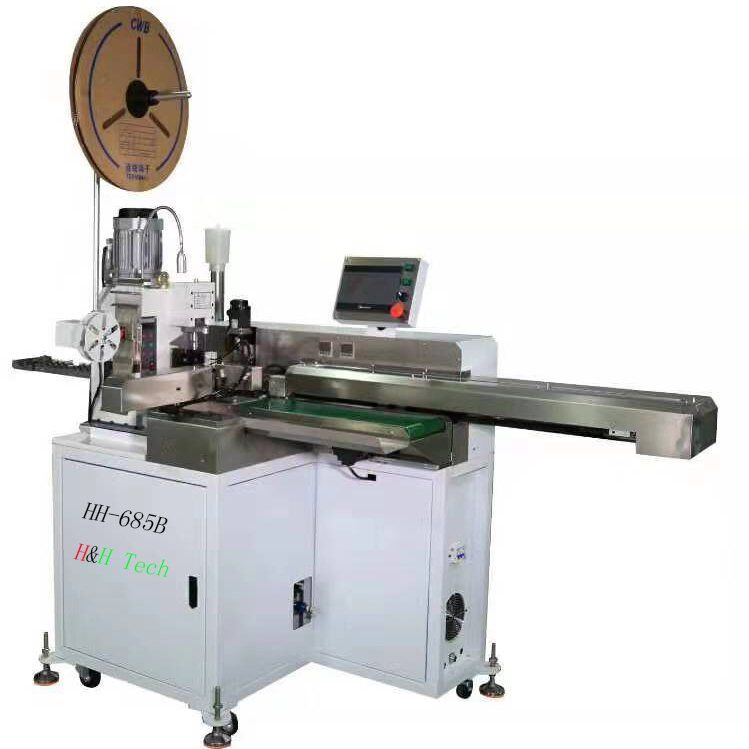

HH-685B Multi-functional Dual Ends Solder and Terminal Crimp Machine
Product Description
HH-685B adopts five-wire feeding and five-wire simultaneous processing mode to realize the functions of double-ended twisting & tinning and single-end terminal crimping & tinning. The transmission part of the machine adopts imported hardware such as Mitsubishi motor and Taiwan guide rail and screw rod, etc. And uses a high-speed single-board computer and another control system to make the machine durable, accurate, and efficient. The Taiwan touch screen setting is adopted to realize the easy function conversion, which is simple and convenient.
Operating Video:
HH-685B https://youtu.be/O6eovq0uH2w
Details About HH-685B Multi-functional Dual Ends Solder and Terminal Crimp Machine
Product Features
※ Mitsubishi servo control is adopted in the transmission part of the motor, which is accurate and reliable；

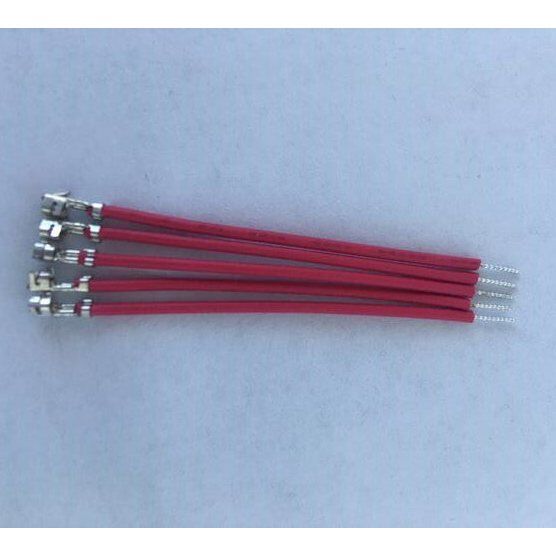

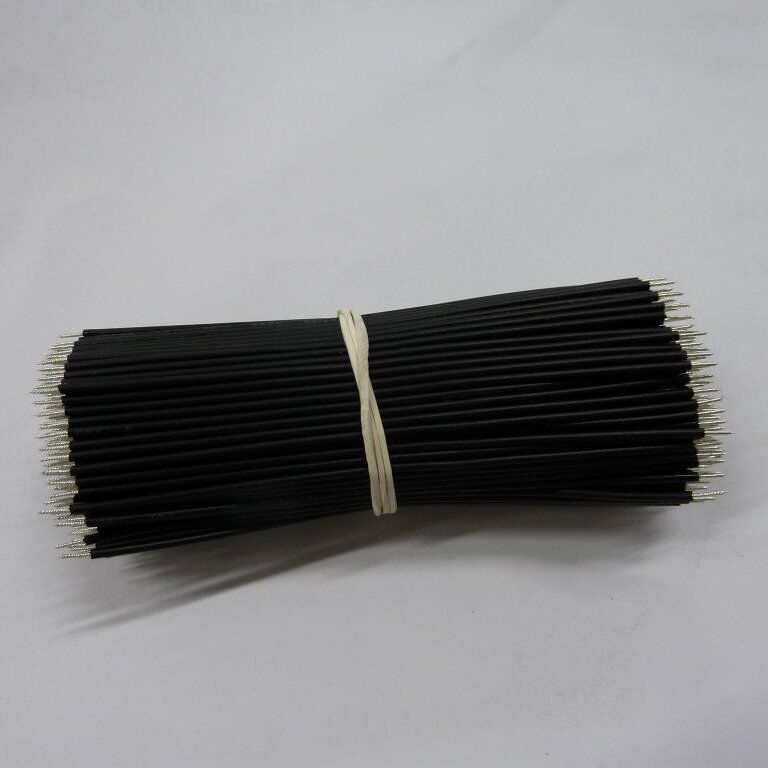

※ Realize the functions of double-end wire twisting and tinning, and single-end terminal crimping & wire twisting and tinning;
※ Higher efficiency and better reliability;
※ Equipped with belt conveying structure, which can straighten the processed wire.
Technical Parameters
| Machine Model | HH-685B Multi-functional Double Ends
Tinning and Terminal Crimping Machine |
| Display Language | English |
| Max. Capacity | 7000pcs/h (Single-end terminal crimping and tinning) |
| Wire Range | AWG#32～AWG#18 |
| Insulated wire Length | 35～950mm |
| Cutting Precision | ﹤± (0.1+0.005*L), L= Cutting Length |
| Stripping Length | A: 1～15mm; B: 1～8mm |
| Crimping Capability | 2.0T |
| Crimping Drive Mode | Frequency converter drive |
| Display Language | English |
| Power & Air Supply | AC 220V, 50/60Hz, 0.5Mpa |
| Dimension | 2700mm*1050mm*1600mm |
| Weight | About 450Kg |
| Wire Types | AV, AVS, AVSS, CAVUS, KV，KIV, UL |
| Functions | Wire cutting & twisting & tinning and Wire stripping, terminal crimping |
