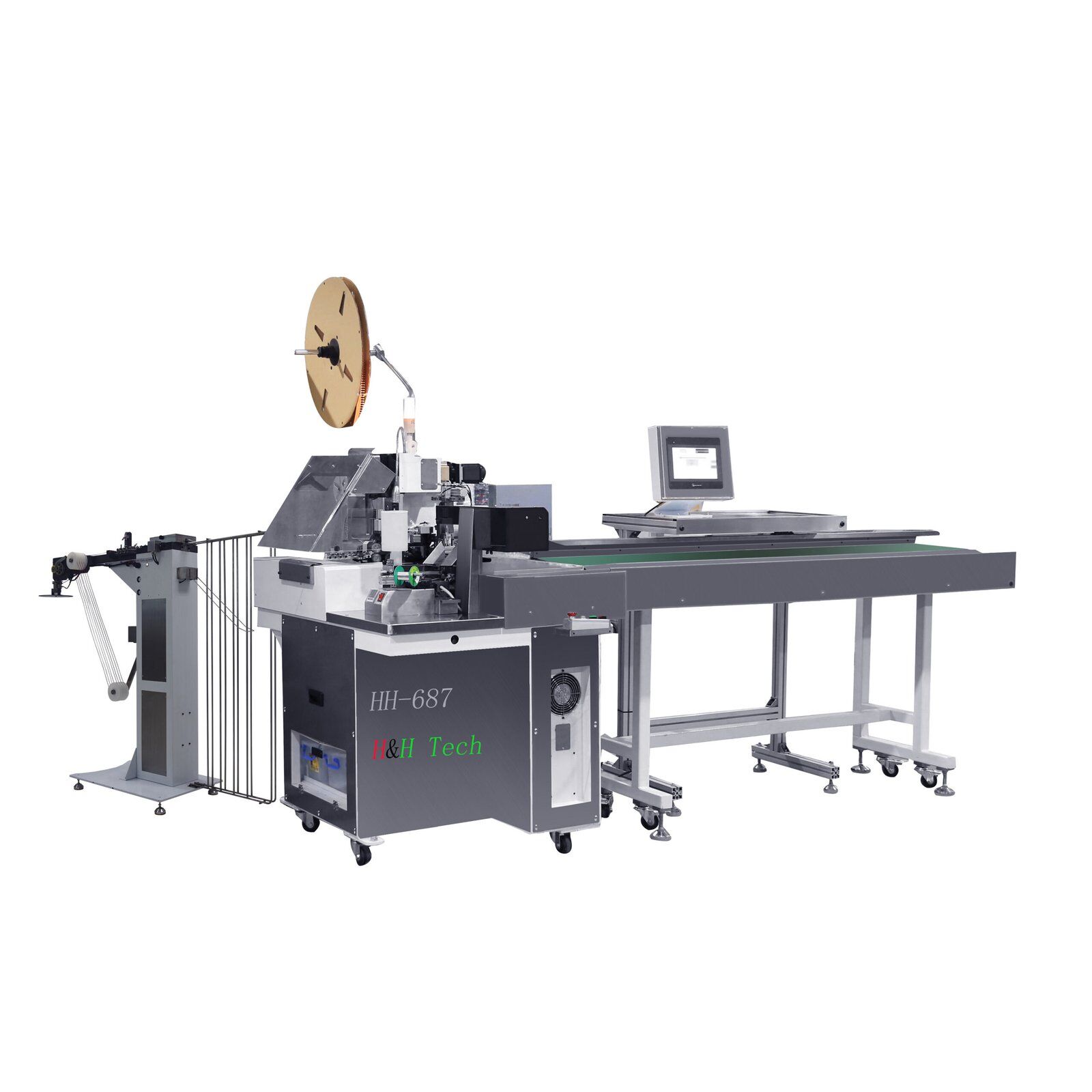

HH-687 Fully-automatic Single End Seal Insert & Terminal Crimp and Solder Machine
Product Description
The high-precise automatic single-end seal inserting & terminal crimping and tinning machine adopt the Mitsubishi servo motor & Mitsubishi control system, and ball screw drive, so that the positions of wire feeding, stripping, seal inserting, and terminal crimping is very accurate, and the movement connection between them is smooth. Mechanical operating control is simple, convenient, and time-saving while debugging, as data adjustments of stripping length, cutting depth, crimping position, and tinning depth are all operated by the touch screen. The automatic detecting device can also effectively control the occurrence of defective products so that they can be found and dealt with in time. HH-687 is a safe, efficient, and precise processing machine that brings you safety, efficiency, and precision. (HH-687 can be customized according to requirements.)
Operating Video:
HH-687 https://youtu.be/EebgHYYBSfQ
HH-687 https://youtu.be/Ot1gc7dE3UQ CFM+CCD
HH-687 https://youtu.be/MA_DEz1zyTg safety acrylic shield
Details About HH-687 Fully-automatic Single End Seal Insert & Terminal Crimp and Solder Machine
Product Features
※ Servo crimping is adopted；
※ Crimping stations can adopt applicators of Japanese, European, Pneumatic, etc.;
※ The seal inserting system with Japanese technology is adopted.
※ Equipped with crimping force monitor, CCD imaging system, etc.;
※ Equipped with a safety shield to protect the personnel.
Technical Parameters
| Machine Model | HH-687 Fully-automatic Single End Seal Inserting & Terminal Crimping and Tinning Machine |
| Display Language | English |
| Wire Range | 0.2～2.5mm² |
| Insulated wire Length | 35～9999mm |
| Cutting Precision | ﹤± (0.1+0.005*L), L= Cutting Length |
| Stripping Length | 0～15mm |
| Twisting & Tinning Length | 3～15mm |
| Setting temp of Tinpot | 400 °C |
| Crimping Capability | 2.5T |
| Crimping Drive Mode | Servo Crimping |
| Power & Air Supply | AC 220V, 50/60Hz, 0.5Mpa |
| Dimension | 1200mm*1100mm*2300mm |
| Weight | About 450Kg |
| Wire Types | AV, AVS, AVSS, CAVUS, KV,KIV, UL |
| Functions | Wire cutting & stripping, terminal crimping, tinning, and Seal inserting |
